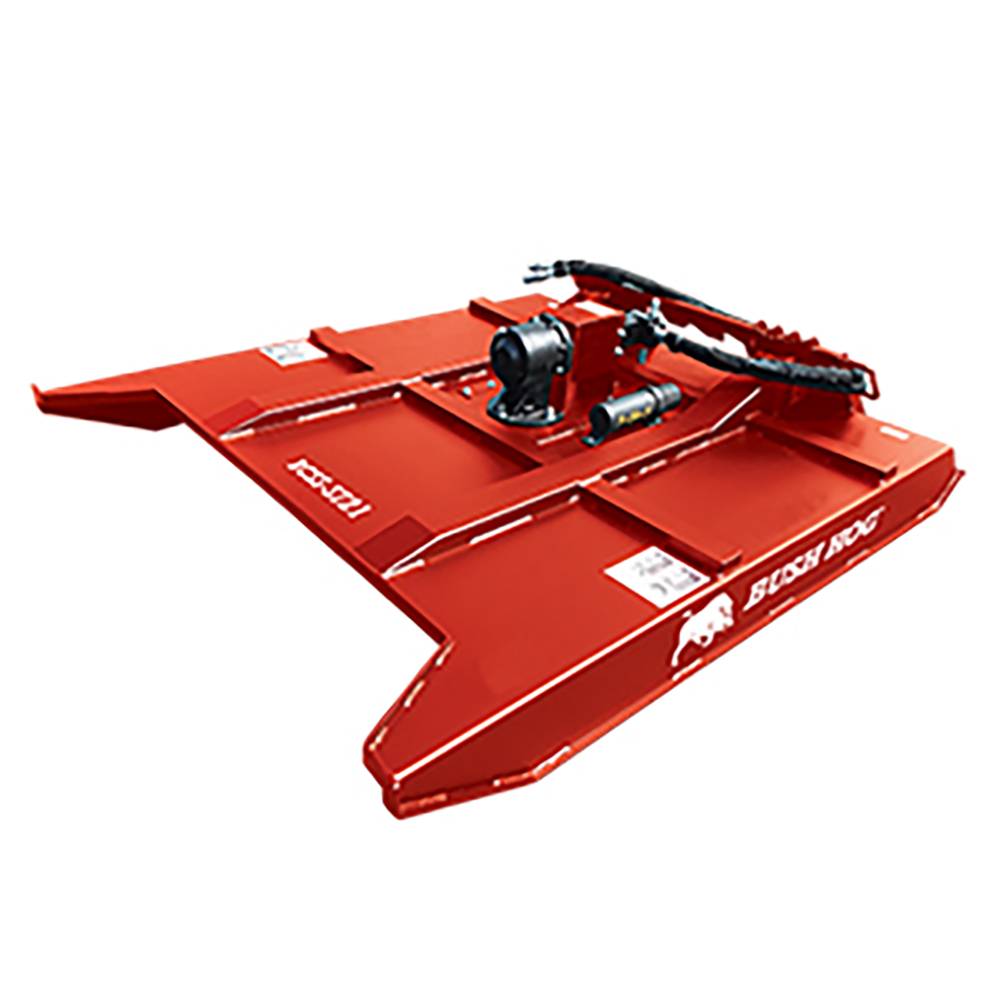

BCSS OPEN FRONT BRUSH CUTTER

Contact us for price

Stock status: Call Store for Availability

The Bush Hog line of BCSS skid steer brush cutters makes clearing brush and saplings easy with a selection of models designed for durability and performance. Like the closed front design, the open front models share heavy duty design features including solid one piece steel decks, long-lasting high tempered steel blades, balanced stump jumpers and welded collars underneath the deck to ensure years of solid performance. Complementing the heavy duty structural elements, all BCSS brush cutters incorporate optimal hydraulic motors and right angle gear boxes to achieve peak production – characterized by the highest torque available and sustained blade tip speeds proven effective in brush cutting applications. Open front models come in both the standard design and a heavy duty design with push bar feature. Cutting widths available include 60” and 72” single spindle. Each unit comes with hoses, couplers and gearbox guard for true “plug and play” – just pair with the appropriate carrier based on hydraulic flow (GPM) and start clearing a path.

Text UsCall Us Now

Specs

Model
BCSS-S601LF
BCSS-S601
Duty Type
Standard Duty
Standard Duty
Cutting Width
60”
60”
Overall Width
61.750″
61.750″
Overall Length
72.250″
72.250″
Weight
840 lb.
840 lb.
GPM Flow
10 – 15 GPM
16 – 25 GPM
Cutting Capacity
3″
4″
Operating PSI Cont./Int.
3,000/3,500 PSI
3,000/3,500 PSI
Spindle Configuration
Single Spindle
Single Spindle
Blades
(2).500″x4.0″ High Strength
(2).500″x4.0″ High Strength
Blade Rotation
Counter Clockwise
Counter Clockwise
Deck Thickness
1/4″ Steel
1/4″ Steel
Motor Protection
Pressure Reliefs
Pressure Reliefs
Drive Protection
GRD-2 Bolt (Shear Bolt)
GRD-2 Bolt (Shear Bolt)
Motor/Gearbox Coupler
Machined Steel
Machined Steel
Model
BCSS-S721LF
BCSS-S721
Duty Type
Standard Duty
Standard Duty
Cutting Width
72”
72”
Overall Width
73.750″
73.750″
Overall Length
84.250″
84.250″
Weight
1,000 lb.
1,000 lb.
GPM Flow
15 – 20 GPM
21 – 25 GPM
Operating PSI Cont./Int.
3,000 / 3,500 PSI
3,000 / 3,500 PSI
Spindle Config.
Single Spindle
Single Spindle
Blades
(2) .500″x 4.0″ High Strength Updraft
(2) .500″x 4.0″ High Strength Updraft
Blade Rotation
Counter Clockwise
Counter Clockwise
Deck Thickness
1/4″ Steel
1/4″ Steel
Motor Protection
Pressure Reliefs
Pressure Reliefs
Drive Protection
GRD-2 Bolt (Shear Bolt)
GRD-2 Bolt (Shear Bolt)
Motor/Gearbox Coupler
Machined Steel
Machined Steel
Model
BCSS-721LF
BCSS-721
BCSS-721HF
Duty Typeh
Heavy Duty
Heavy Duty
Heavy Duty
Cutting Width
72”
72”
72”
Overall Width
73.750″
73.750″
73.750″
Overall Length
84.250″
84.250″
84.250″
Weight
1,186 lb.
1,220 lb.
1,270 lb.
GPM Flow
15 – 20 GPM
21 – 25 GPM
26 – 40 GPM
Cutting Capacity.
3″
4″
5″
Operating PSI Cont./Int.
3,000/3,500 PSI
3,000/3,500 PSI
3,000/3,500 PSI
Spindle Config.
Single Spindle
Single Spindle
Single Spindle
Blades
(2).500″x4.0″ High Strength
(2).500″x4.0″ High Strength
(2).500″x4.0″ High Strength
Blade Rotation
Counter Clockwise
Counter Clockwise
Counter Clockwise
Deck Thickness
1/4″ Steel
1/4″ Steel
1/4″ Steel
Motor Protection
Pressure Reliefs
Pressure Reliefs
Pressure Reliefs
Drive Protection
GRD-2 Bolt (Shear Bolt)
GRD-2 Bolt (Shear Bolt)
GRD-2 Bolt (Shear Bolt)
Motor/Gearbox Coupler
Machined Steel
Machined Steel
Machined Steel
