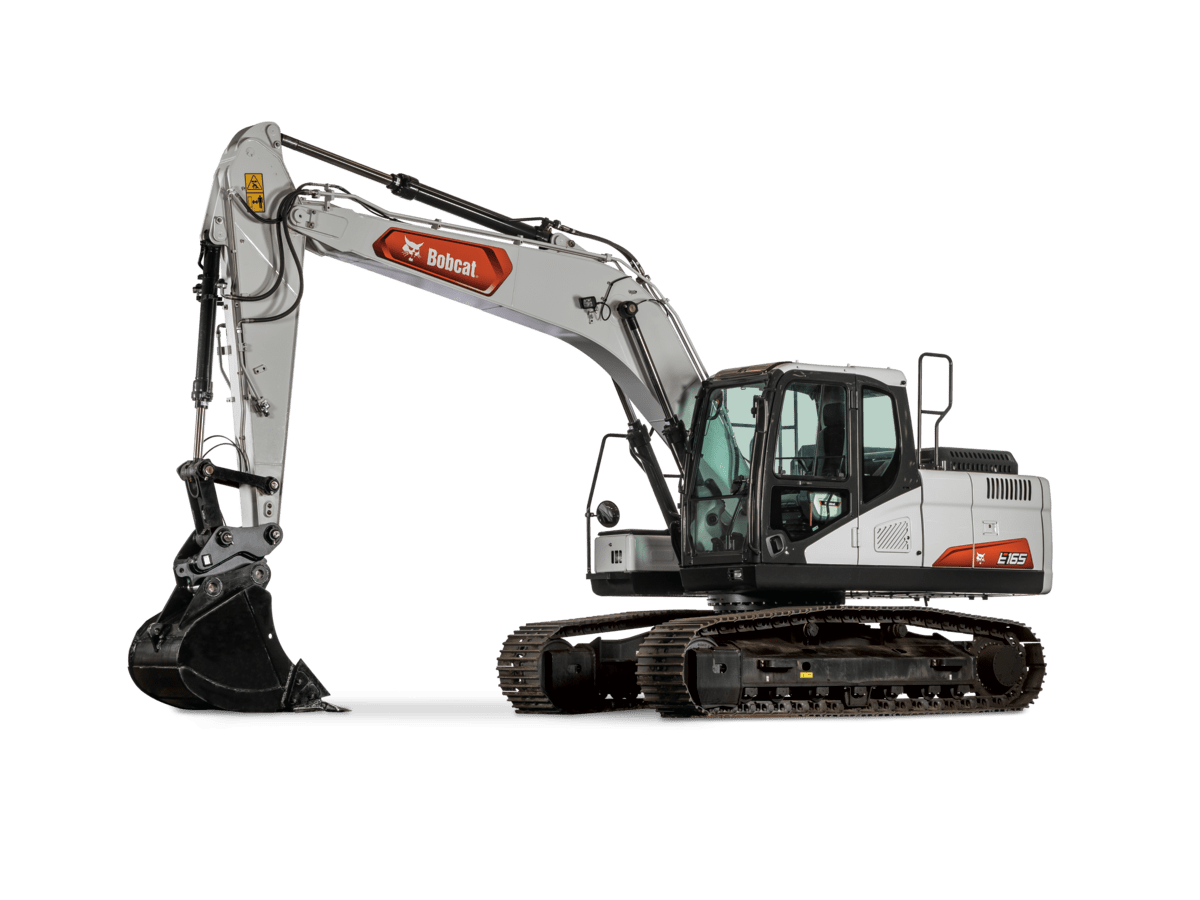

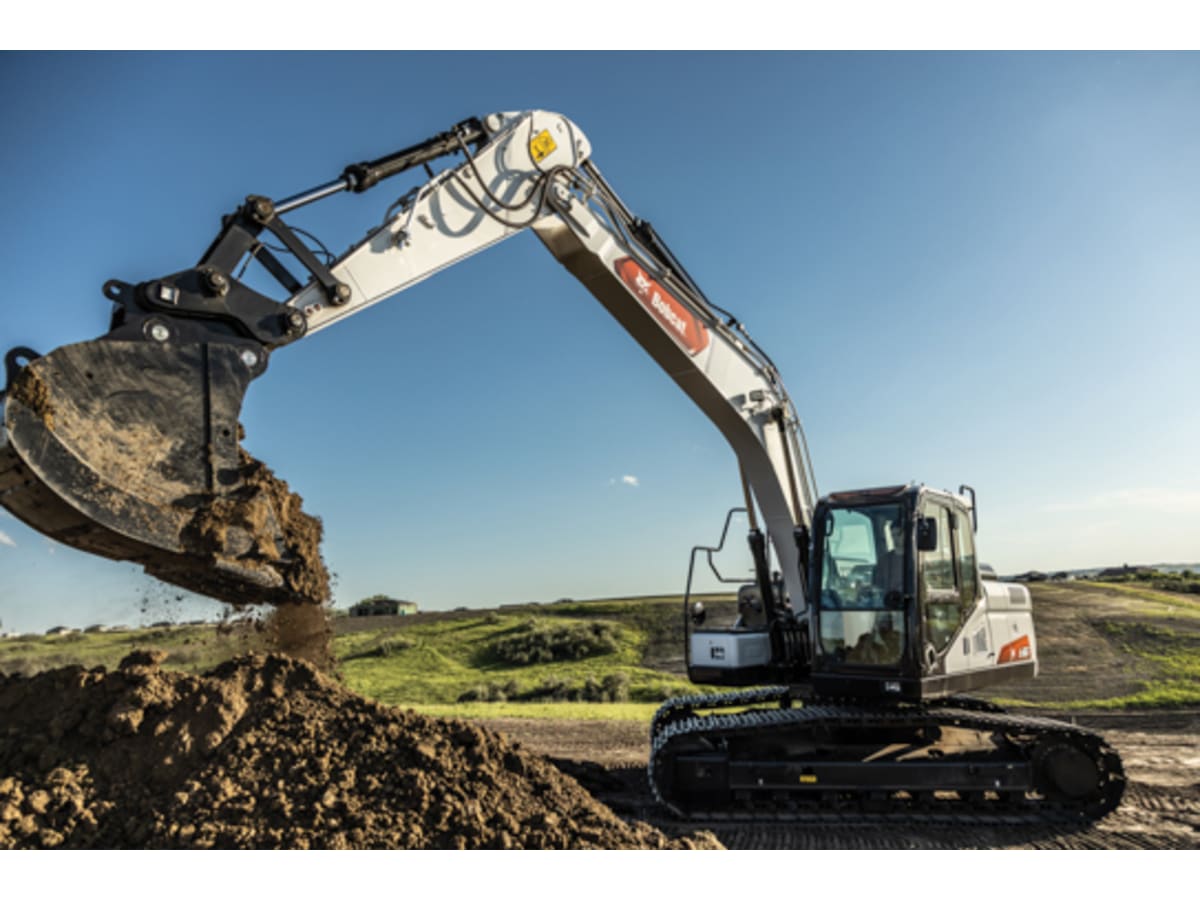

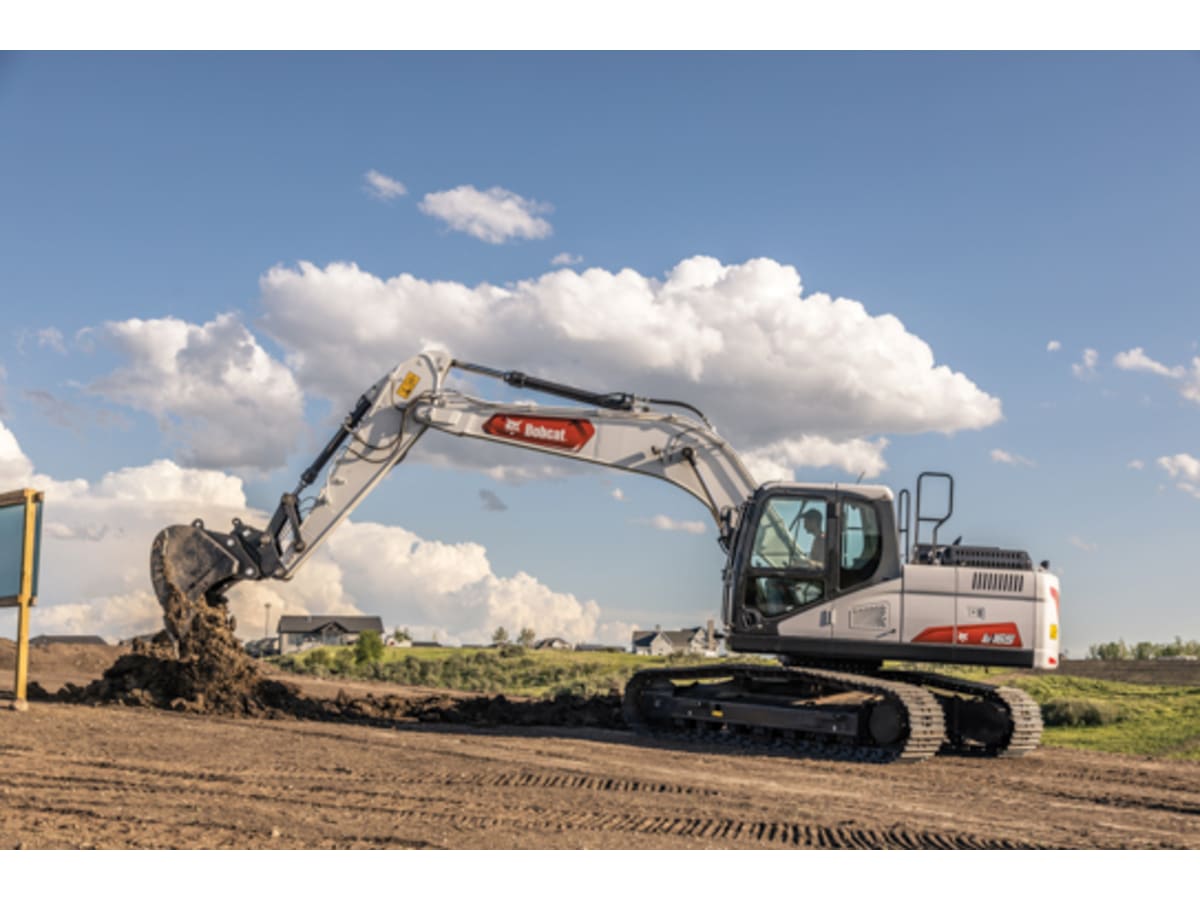

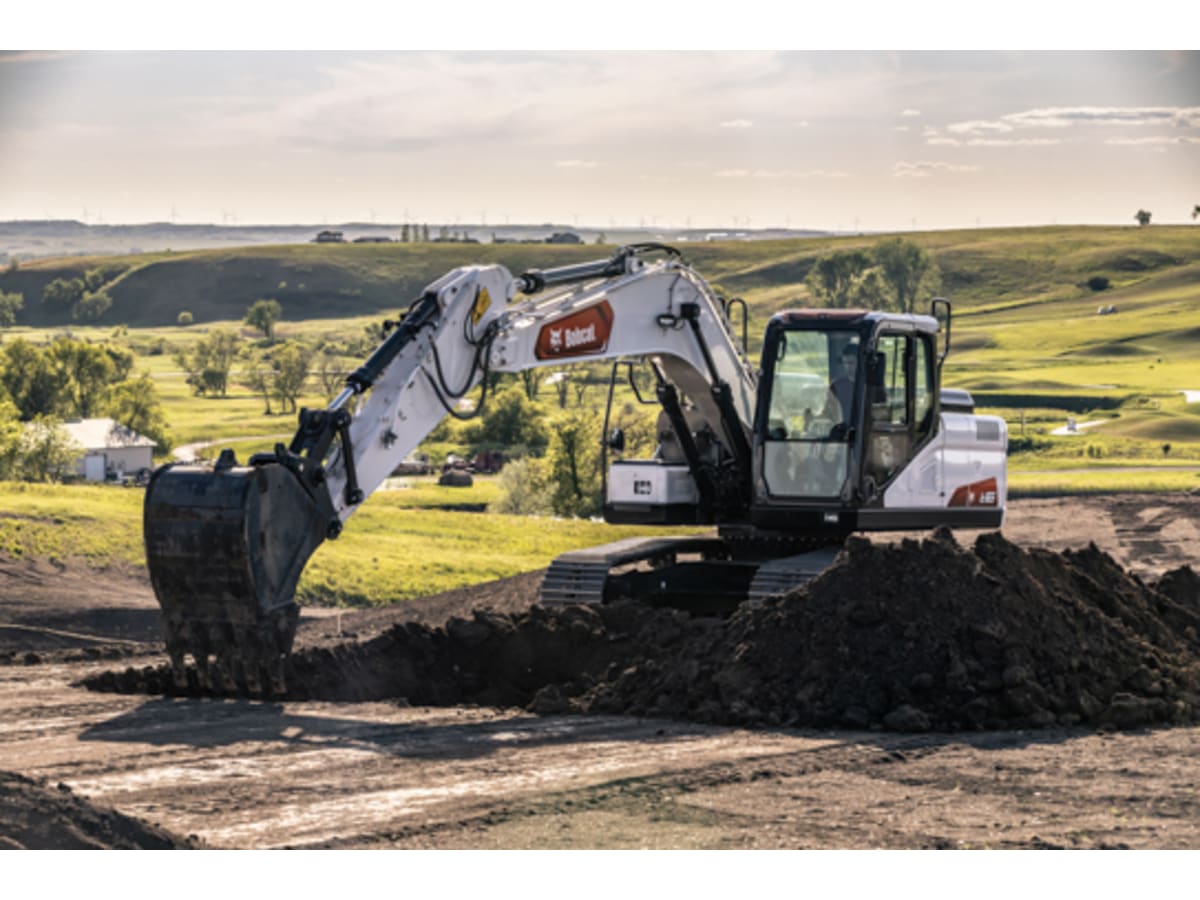

Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator
Bob Cat E165 Large Excavator

Bob Cat E165 Large Excavator

Contact us for price

Stock status: Call Store for Availability

The E165 large excavator brings you optimized performance for heavy digging and lifting on the job site.

Choose 0% financing for 48 months* plus a $6,000 USD*/$7,800 CAD* rebate or receive a $15,000 USD*/ $19,500 CAD* cash rebate in lieu of financing on the E165 large excavator.

Text UsCall Us Now

Specs

E165 Key Specifications

E165 <!-->
Operating Weight
38,376 lb
Bucket Digging Force
25,794 lbf
Maximum Reach at Ground Level
345.6 in
Width
102 in
Tail Swing Type
Conventional -->
<!-->


E165 <!-->
Emissions Tier (EPA)
Tier 4 -->
Engine Fuel
Diesel <!-->
Turbocharged Engine
yes -->
Optional Turbocharged Engine
N/A <!-->
E165 <!-->
Operating Weight
38,376 lb
Weight Class
17 t
Travel Speed - High
3.1 mph
Travel Speed - Low
1.9 mph
Arm Digging Force
18,077 lbf
Bucket Digging Force
25,794 lbf
Maximum Dig Depth
240 in
Max Dump Height
255.6 in
Maximum Reach at Ground Level
345.6 in
E165 <!-->
Fuel Tank
77.1 gal
E165 <!-->
Auxiliary Pressure
4,694 psi
Total Hydraulic Flow
80.4 gal/min
E165 <!-->
Length
325.2 in
Width
102 in
Height
120 in
Height with Operator Cab
115.2 in
E165 <!-->
Air Conditioning
Standard -->
Cab Enclosure
Standard <!-->
Heater Air Conditioning
Standard -->
Radio
Standard <!-->
Tail Swing Type
Conventional -->
Auxiliary Hydraulics
Standard <!-->
Quick Tach System
Optional -->
Rubber Track
Not Applicable  <!-->
Selectable Auxiliary Hydraulic Flow
Standard -->
Dozer Blade
Not Applicable  <!-->
-->


E165 Key Specifications

<!-->
E165 -->
Operating Weight
38,376 lb
Bucket Digging Force
25,794 lbf
Maximum Reach at Ground Level
345.6 in
Width
102 in
Tail Swing Type
Conventional <!-->
-->


Engine

<!-->
E165 -->
Emissions Tier (EPA)
Tier 4 <!-->
Engine Fuel
Diesel -->
Turbocharged Engine
yes <!-->
Optional Turbocharged Engine
N/A -->

Performance

<!-->
E165 -->
Operating Weight
38,376 lb
Weight Class
17 t
Travel Speed - High
3.1 mph
Travel Speed - Low
1.9 mph
Arm Digging Force
18,077 lbf
Bucket Digging Force
25,794 lbf
Maximum Dig Depth
240 in
Max Dump Height
255.6 in
Maximum Reach at Ground Level
345.6 in

Capacities

<!-->
E165 -->
Fuel Tank
77.1 gal

Hydraulic System

<!-->
E165 -->
Auxiliary Pressure
4,694 psi
Total Hydraulic Flow
80.4 gal/min

Dimension

<!-->
E165 -->
Length
325.2 in
Width
102 in
Height
120 in
Height with Operator Cab
115.2 in

Features

<!-->
E165 -->
Air Conditioning
Standard <!-->
Cab Enclosure
Standard -->
Heater Air Conditioning
Standard <!-->
Radio
Standard -->
Tail Swing Type
Conventional <!-->
Auxiliary Hydraulics
Standard -->
Quick Tach System
Optional <!-->
Rubber Track
Not Applicable  -->
Selectable Auxiliary Hydraulic Flow
Standard <!-->
Dozer Blade
Not Applicable  -->
<!-->
-->
