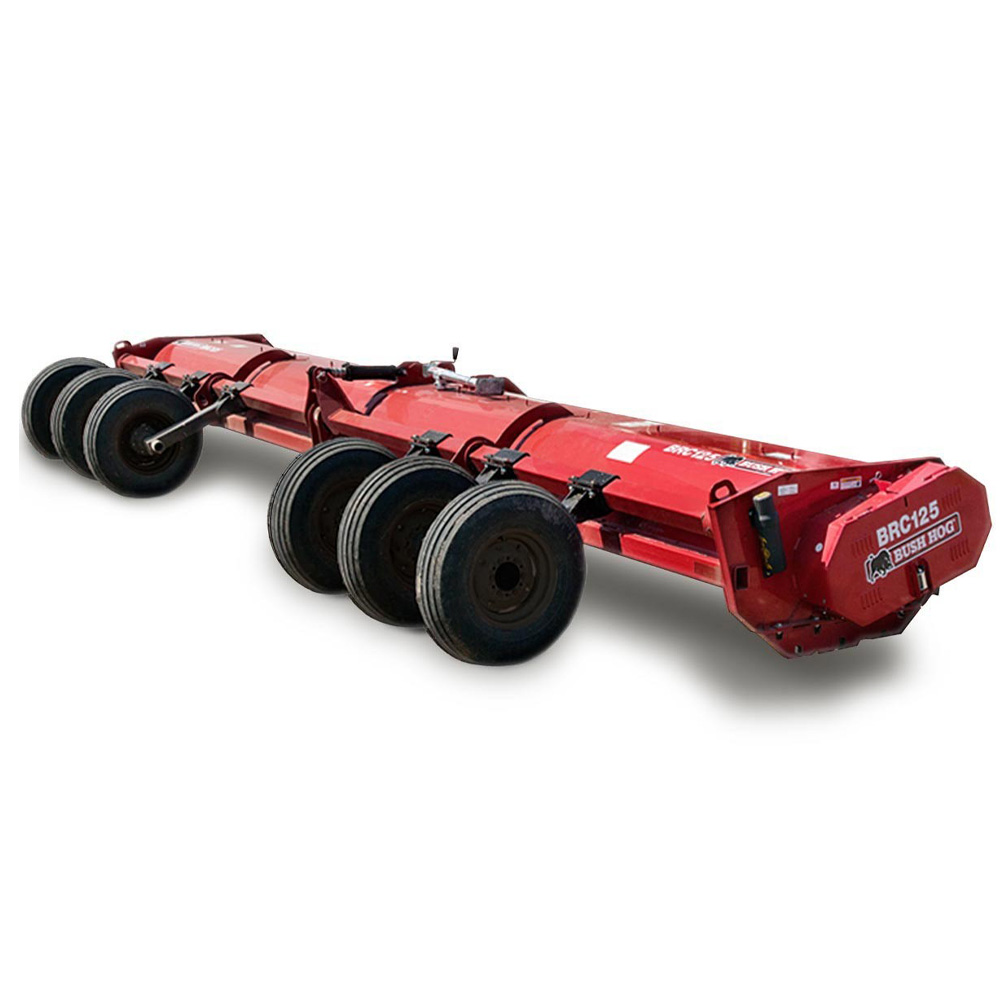

Bush Hog® BRC Flail Crop Shredder

Contact us for price

Stock status: Call Store for Availability

The Bush Hog® line of BRC row crop flails provides superior shredding performance in a number of crop conditions. Cotton, BT corn stalks, milo, rice, wheat and vegetable stubble are no match for these machines. Designed to handle higher volumes of crop residue, the BRC models from Bush Hog are equipped with a re-cutter bar design which allows the material to be cut three times, thereby speeding up crop decomposition. Computer-balanced 10 3/4-inch diameter rotors ensure smooth operation in tough conditions. Triple-lipped, sealed double row spherical roller bearings, combined with reversible, hard surfaced cutter knives and 3/16-inch internal steel liners at critical wear areas, ensure greater reliability in tough conditions. Bush Hog® units are available in 15, 18, 20 and 25-foot operating widths to match various crop conditions and row spacings. Depending on the model, the BRC row crop flails are available with pull, lift or semi-mount hitches. These BRC row crop flails are ready to shred!

Text UsCall Us Now

Specs

MODELS
BRC115
BRC118
BRC120
BRC125
Cutting Width
15′
18′
20′
25′
Overall Width
17′
20′
22′
27′
Cutting Height
1″ to 18″
1″ to 18″
1″ to 18″
1″ to 18″
Hitch Type
CAT II-III QH Lift, Semi-Mount, or Pull Type
CAT II-III QH Lift, Semi-Mount, or Pull Type
CAT II-III QH Lift, Semi-Mount, or Pull Type
Lift, Semi-Mount, or Pull Type
Cutter Shaft Diameter
10-3/4″
10-3/4″
10-3/4″
10-3/4″
Min PTO HP Required
Lift
120 HP
130 HP
130 HP
N/A
Semi-Mount
100 HP
110 HP
120 HP
150 HP
Pull-Type
100 HP
110 HP
120 HP
140 HP
Gearbox Rating**
207 HP
207 HP
207 HP
207 HP
PTO Type
1,000 RPM
1,000 RPM
1,000 RPM
1,000 RPM
Blades
Hard Surfaced: No “D” Rings
Blade Tip Speed (FPM)
12,620
12,620
12,620
12,000
No. of Blades
168
200
216
272
Driveline Size
Cat. 5 or 6
Cat. 5 or 6
Cat. 5 or 6
Cat. 5 or 6
Driveline Protection
5 x 5V Banded Belt
5 x 5V Banded Belt
5 x 5V Banded Belt
5 x 5V Banded Belt
Rotor Bearing Protection
Anti-Wrap Seal Protector
Cutter Shaft Bearings
2-9/16″ Double Row Spherical Roller, Triple Sealed
Hood Thickness
3/16″ with 3/16″ Internal Wear Liner
End Plate Thickness
1/4″
1/4″
1/4″
1/4″
No. of Axles
4
4
4
4
Wheel Hub Size
5-Bolt
5-Bolt
6-Bolt
6-Bolt
Tire Size/Type
6.70-5 Ribbed
6.70-5 Ribbed
9.5L-15 Ribbed
9.5L-15 Ribbed
Safety Deflector Type
Standard
Standard
Standard
Standard
Weight (Approx.)
4,600-lbs.
4,960-lbs.
5,150-lbs.
6,300-lbs.
