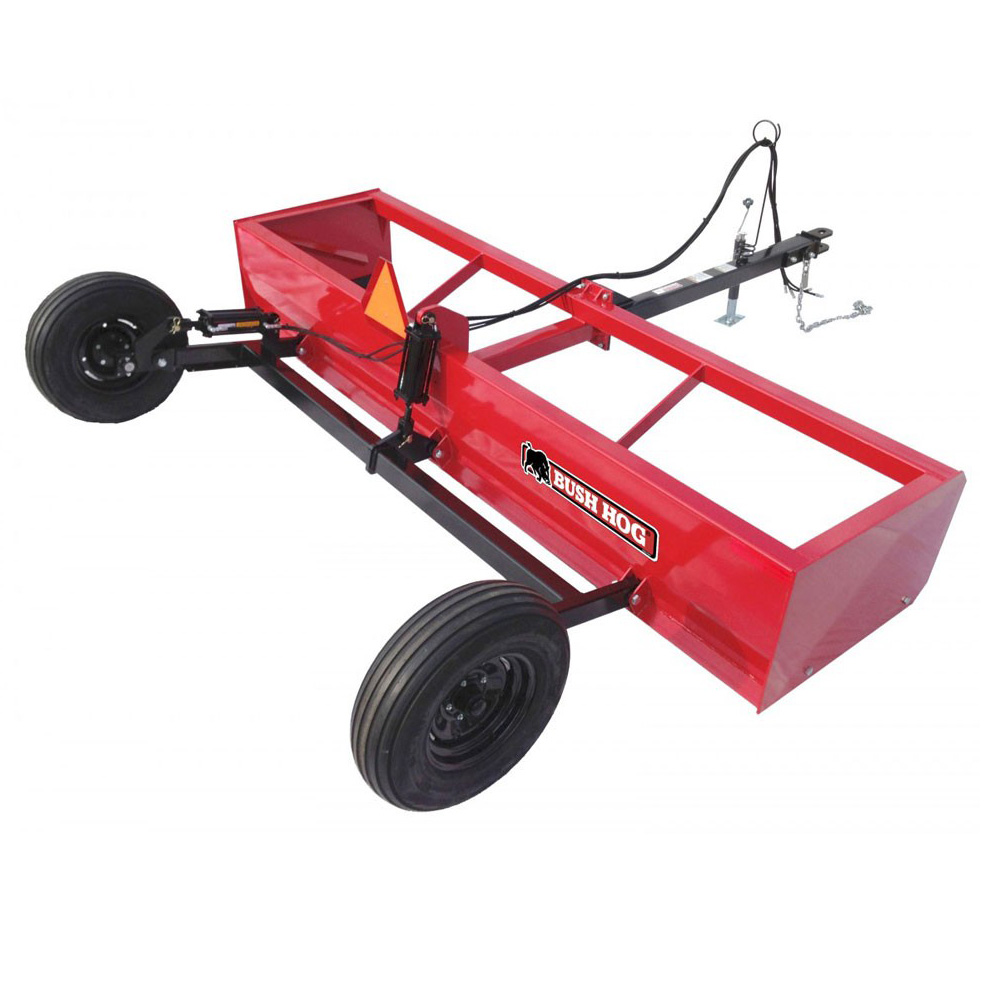

Bush Hog® Pull Dirt Scrapers

Contact us for price

Stock status: Call Store for Availability

Bush Hog’s new DSP Line of Pull-Type Drag Scrapers, with standard fixed axle or optional tilt axle, is ideal for moving large quantities of material, leveling, and finish grading. The DSP units come available in 8’, 10’ and 12’ widths. DSP scrapers equipped with the optional tilt axle can do everything the standard axle does, as well as remove material on an angle for sloping, terracing and ditching. Material can be transferred by dragging it to nearby locations and raising the scraper to deposit the load. Surfaces can be graded and leveled by scraping material from high areas and allowing accumulated material to flow under the grader blade into lower areas. The DSP scrapers are designed for 70 to 125 horsepower tractors and have replaceable wear plates on the sides.

Text UsCall Us Now

Specs

Models
DSP8
DSP10
DSP12
Horsepower Rating
70 to 125
70 to 125
70 to 125
Transport Width
97-inches
121-inches
144 3/16-inches
Working Width
96 3/16-inches
120 3/16-inches
144 3/16-inches
Capacity
1 3/4 cu. yds.
2 1/4 cu. yds.
2 3/4 cu. yds.
Weight without material in Weight Box
Tilt Axle
1525-lb
1645-lb
1700-lb
No Tilt Axle
1405-lb
1525-lb
1580-lb
Weight of Material in Weight Box
760-lb
760-lb
760-lb
Depth of Box
39-inches
39-inches
39-inches
Maximum Cutting Depth
5-inches below grade
5-inches below grade
5-inches below grade
Dump Clearance
21-inches
21-inches
21-inches
Maximum Tilt Depth To the Right
7-inches
7 5/8-inches
8 1/4-inches
Maximum Tilt angle
3 1/2°
3 1/2°
3 1/2°
Tongue Construction
4×4-inches x 1/4-inch tubing
4×4-inches x 1/4-inch tubing
4×4-inches x 1/4-inch tubing
Side Plate Construction
3/8×24 5/16-inches high x 39 3/4inches deep
3/8×24 5/16-inches high x 39 3/4inches deep
3/8×24 5/16-inches high x 39 3/4inches deep
Moldboard Construction
1/4-inch x 24 1/4-inches high when formed
1/4-inch x 24 1/4-inches high when formed
1/4-inch x 24 1/4-inches high when formed
Cutting Edge
1/2-inch x 6-inches reversible & replaceable
1/2-inch x 6-inches reversible & replaceable
1/2-inch x 6-inches reversible & replaceable
Cutting Edge Reinforcement
3-inches x 3-inches x 5/16-inch angle plus a 1/4-inch mold board = 9/16-inch at the cutting edge
3-inches x 3-inches x 5/16-inch angle plus a 1/4-inch mold board = 9/16-inch at the cutting edge
3-inches x 3-inches x 5/16-inch angle plus a 1/4-inch mold board = 9/16-inch at the cutting edge
Tires
New 9.5l x 15 8 PLY RIB TL on Rim 5 with 5.5 BHC
New 9.5l x 15 8 PLY RIB TL on Rim 5 with 5.5 BHC
New 9.5l x 15 8 PLY RIB TL on Rim 5 with 5.5 BHC
Maximum Transport Speed
20 MPH
20 MPH
20 MPH
Lift Cylinder
3 1/2-inches x 8-inches ASAE
3 1/2-inches x 8-inches ASAE
3 1/2-inches x 8-inches ASAE
Tilt Cylinder
3 1/2-inches x 8-inches ASAE
3 1/2-inches x 8-inches ASAE
3 1/2-inches x 8-inches ASAE
