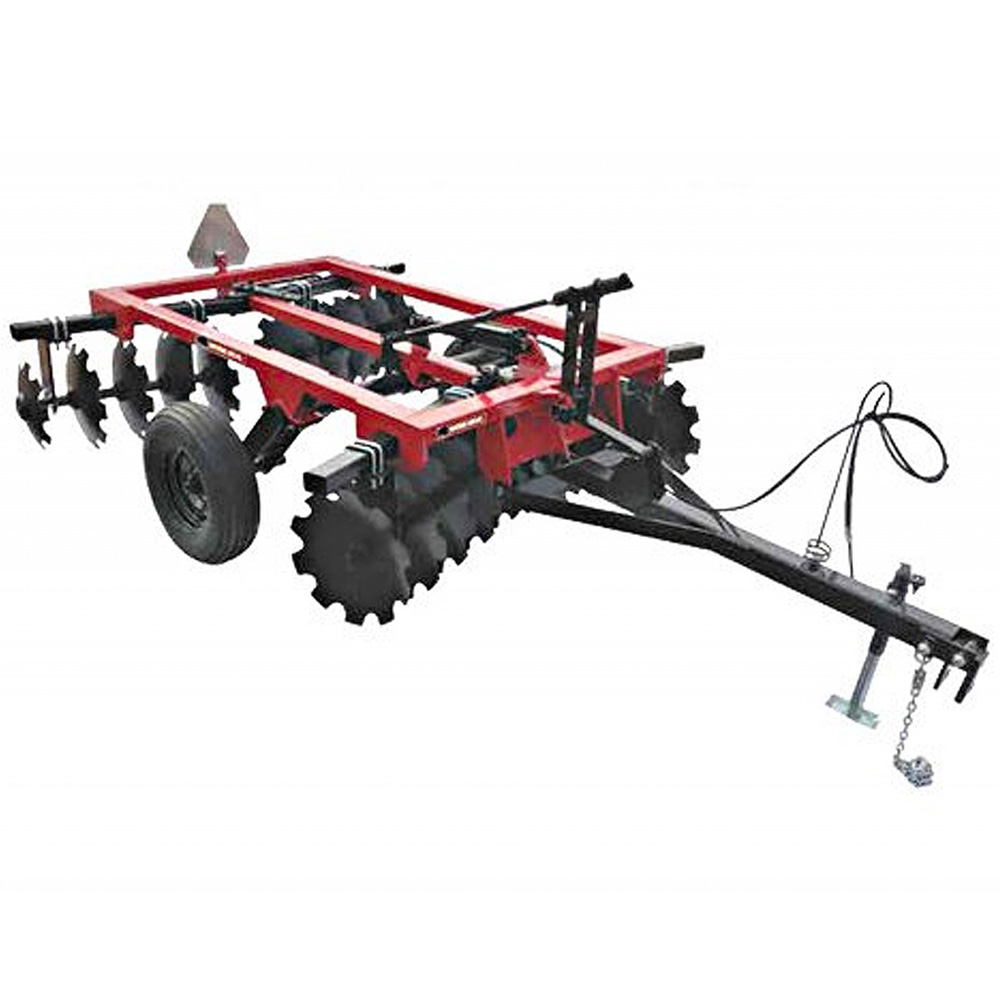

Bush Hog® Pull Disc Harrows

Contact us for price

Stock status: Call Store for Availability

Bush Hog’s new Pull Disc Harrows, the DHP Series, are designed for pulverizing soil, seed bed preparation and general tillage. Solid built units available in widths of 8’, 10’ and 12’, the DHP line of disc harrows are ideally suited for use by small farmers, food plot managers, ranchers, construction crews and nursery operators. The DHP Series units share many features available on larger, more expensive models, including front-to-rear leveling, a depth control system, adjustable-gang angles, and streamlined tubular gang hangers. Multiple blade spacing options are available with your DHP Series Pull Disc harrows. Blade spacings of 7-1/2” allow for fine, finish discing needed for seedbed preparation or 9 inches for breaking up and fracturing “new ground” or a combination of the two. Six multiple blade spacing options for each model are available with your DHP Series Pull Disc Harrows; 20” or 22” notched discs at each of following spacing options: 7.5” front & rear, 9” front & rear, 9” front and 7.5”rear. High strength 1-1/8” square gang axles, combined with tough gang components, and triple lip sealed ball bearings, ensure the DHP models are ready for the toughest jobs. Put a Bush Hog DHP disc harrow to work for you today.

Text UsCall Us Now

Specs

Models
DHP8
DHP10
DHP12
Drawback Horsepower Requirement
40-65 hp
40-100 hp
55-100 hp
Hitch Type
Pull-type w/clevis & hole for 1 1/4” pin
Approximate Transport Width
8’-10”
10’-10”
12’-4”
Max Cultivation Width
8’-6”
10’-6”
12’
Mainframe Width
60”
93 1/2”
93 1/2”
Approx weight load on each blade (lbs.)
85-9
84-94
82-92
Disc Blade Sizes & Types
20” or 22” Notched
Disc Blade Spacing
7.5” or 9” or a combination of both
Disc Bearing Type
Triple lip sealed ball bearings
# of Bearings
8
12
12
Forward Gang Angle Adjustment
15, 16.5, 18, 19.5, 21 Degrees
Rear Gang Angle Adjustment
12, 13.5, 15, 16.5, 18 Degrees
Hitch Frame Construction
4” x 4” x 1/4” tubing
Side Mainframe Construction
4” x 3” x 1/4” tubing
Mainframe Width
60”
93 1/2”
93 1/2”
Mainframe Middle Tube Construction
4” x 3” x 1/4” tubing
Gang Arm Construction
4” x 3” x 1/4” tubing
Gang Axle
1 1/8” Square, High Carbon Steel
Front to Rear Leveling System
Manual crank adjustment
Depth Control
Cylinder stroke control spacers
Hydraulic Cylinder
3- 1/2” x 8” ASAE hydraulic cylinder
Transport Tire & Wheels
Two 9.5L x 15 tires on 15” x 6” – 5 bolt wheels
Parking Jack
Standard
Available Options
Disc Scrapers, Center Sweep Kit, Dual Wheel Transport Kit
