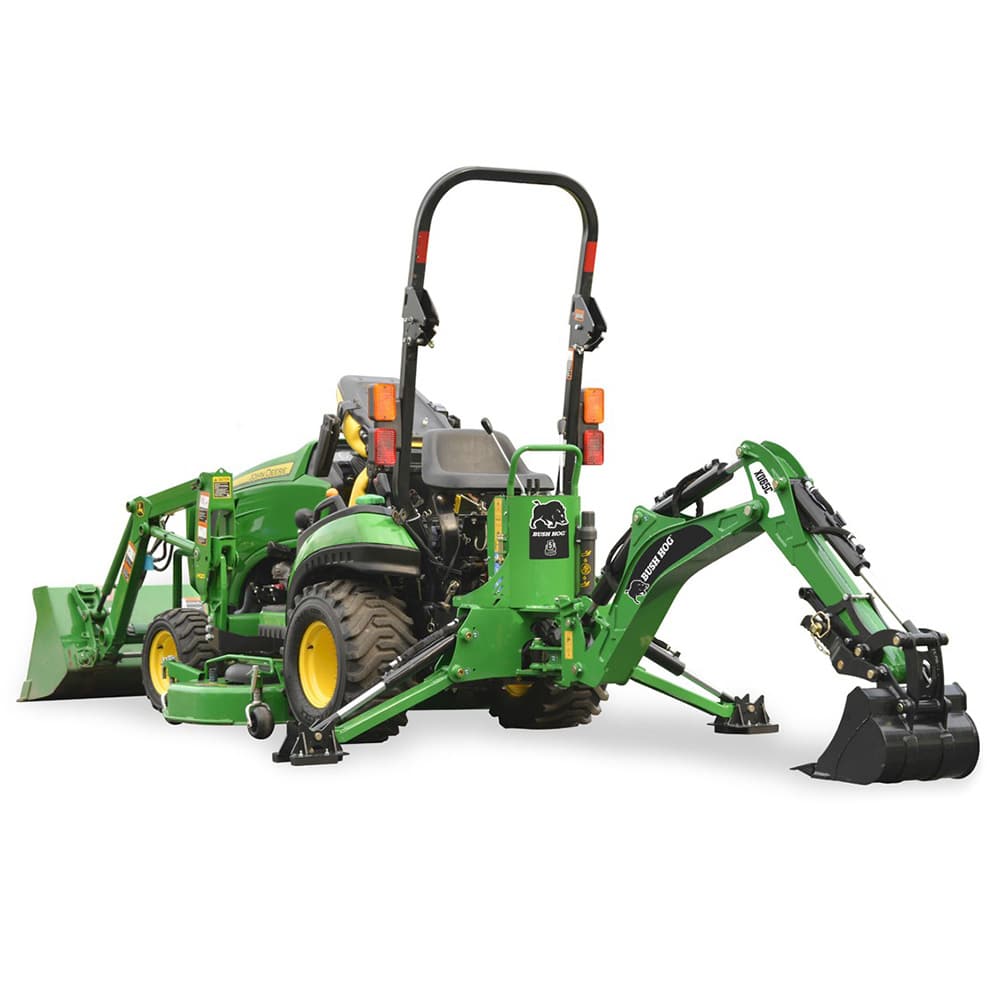

Bush Hog® XD65C

Bush Hog® XD65C

Contact us for price

Stock status: Call Store for Availability

Break ground, not your back!

Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation.

Text UsCall Us Now

Specs

Models
XD65C
Transport Height (with boom fully retracted)
64.5”
Transport Width (with stabilizers up)
41”
Loading Height (bucket at 60° rotation)
62”
Ground Clearance
8 1/2”
Transport Length
56”
Transport Weight (base unit only – no bucket or mounts)
500 lbs.
Digging Depth (2 ft. flat bottom)
6’4”
Overall Operating Height (fully raised)
91”
Reach from Swing Post
100”
Bucket Rotation
180°
Swing Arc
150°
Stabilizer Width (Spread)
72”
Stabilizer Width (Transport)
41”
Operating Pressure
1800 psi
SAE* Dipper Boom Digging Force
1250 lbs.
SAE* Bucket Digging Force
2054 lbs.
Boom Lift Capacity (end of dipper 3’ from ground)
250 lbs.
Hydraulic Volume Requirements
3½-6 gpm*
Flow Divider
–
Recommended Tractor HP
18-28 HP
Recommended Skidsteer Requirements
Mini Skidsteer
Bucket Sizes Available
9, 12, 15, 18
3 Point Hitch
N/A
Cylinder Diameters
Main Boom Cylinder Diameter
2.5
Dipper Cylinder Diameter
2.25
Bucket Cylinder Diameter
2.5 (x1)
Swing Cylinder Diameter
2
Stabilizer Cylinder Diameter
2
Extender Cylinder Diameter
–
