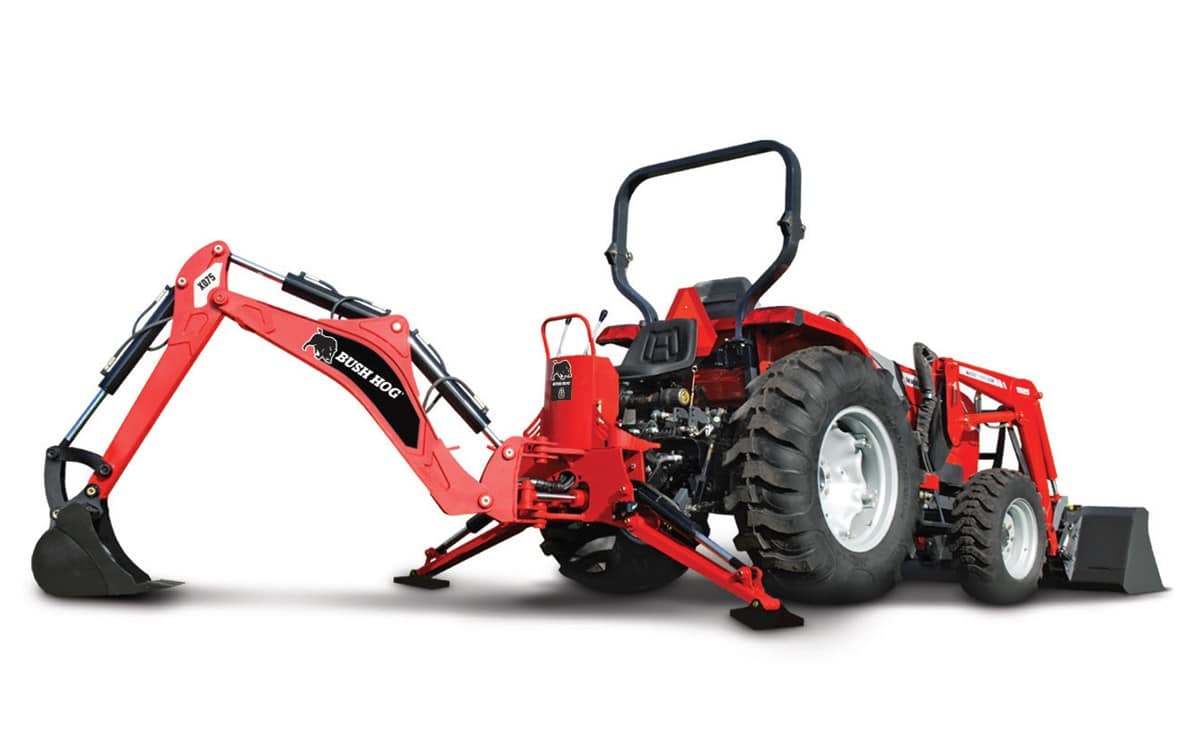

Bush Hog® XD75

Bush Hog® XD75

Contact us for price

Stock status: Call Store for Availability

Break ground, not your back!

Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation.

Digging 7.5 feet deep and reaching 10 feet across, the XD75 breaks ground and keeps on going. With an excavator-style curved boom and easy-to-use controls, the XD75 is ready to handle any ground conditions from topsoil to clay and gravel.

Text UsCall Us Now

Specs

Models
XD65C
Transport Height (with boom fully retracted)
79”
Transport Width (with stabilizers up)
42½”
Loading Height (bucket at 60° rotation)
80”
Ground Clearance
10½”
Transport Length
80”
Transport Weight (base unit only – no bucket or mounts)
800 lbs.
Digging Depth (2 ft. flat bottom)
7’8”
Overall Operating Height (fully raised)
119”
Reach from Swing Post
123”
Bucket Rotation
180°
Swing Arc
180°
Stabilizer Width (Spread)
89”
Stabilizer Width (Transport)
42½”
Operating Pressure
2250 psi
SAE* Dipper Boom Digging Force
2300 lbs.
SAE* Bucket Digging Force
3800 lbs.
Boom Lift Capacity (end of dipper 3’ from ground)
925 lbs.
Hydraulic Volume Requirements
3½-6 gpm*
Flow Divider
Included
Recommended Tractor HP
30-60 HP
Recommended Skidsteer Requirements
30-60
Bucket Sizes Available
99, 12, 15, 18, 24
3 Point Hitch
Cat I (PT300) / Cat II (PT322)
Cylinder Diameters
Main Boom Cylinder Diameter
3.0
Dipper Cylinder Diameter
2.5
Bucket Cylinder Diameter
2.5 (x2)
Swing Cylinder Diameter
2.5
Stabilizer Cylinder Diameter
2.5
Extender Cylinder Diameter
–
