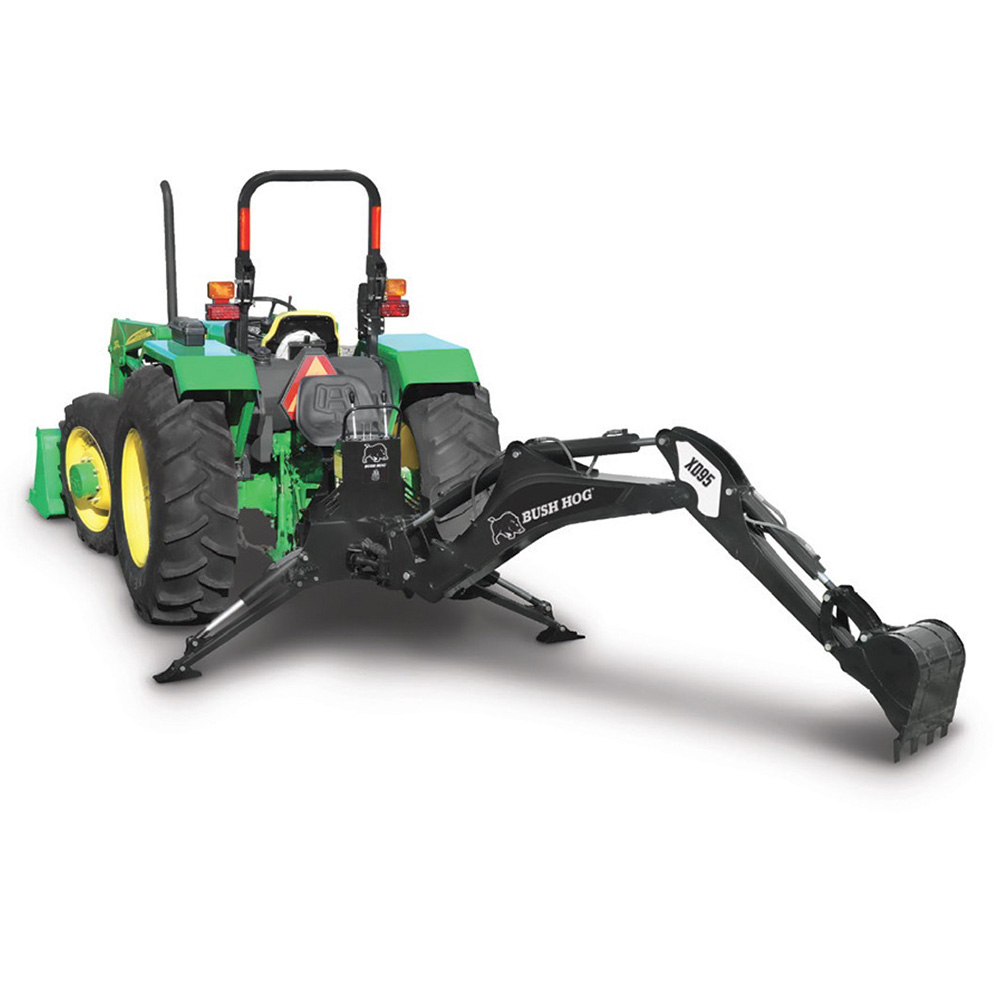

Bush Hog® XD95
Contact us for price
Stock status: Call Store for Availability
Models
XD95
Transport Height (with boom fully retracted)
92”
Transport Width (with stabilizers up)
42½”
Loading Height (bucket at 60° rotation)
89”
Ground Clearance
10½”
Transport Length
81”
Transport Weight (base unit only – no bucket or mounts)
850 lbs.
Digging Depth (2 ft. flat bottom)
9’4”
Overall Operating Height (fully raised)
135”
Reach from Swing Post
141”
Bucket Rotation
180°
Swing Arc
180°
Stabilizer Width (Spread)
89”
Stabilizer Width (Transport)
42½”
Operating Pressure
2250 psi
SAE* Dipper Boom Digging Force
3200 lbs.
SAE* Bucket Digging Force
3925 lbs..
Boom Lift Capacity (end of dipper 3’ from ground)
750 lbs.
Hydraulic Volume Requirements
5-7 gpm*
Flow Divider
Included
Recommended Tractor HP
45-100 HP
Recommended Skidsteer Requirements
45-100
Bucket Sizes Available
9, 12, 15, 18, 24
3 Point Hitch
Cat I (PT300) / Cat II (PT322)
Cylinder Diameters
Main Boom Cylinder Diameter
3
Dipper Cylinder Diameter
2.5
Bucket Cylinder Diameter
2.5 (x2)
Swing Cylinder Diameter
2.5
Stabilizer Cylinder Diameter
3
Extender Cylinder Diameter
–
