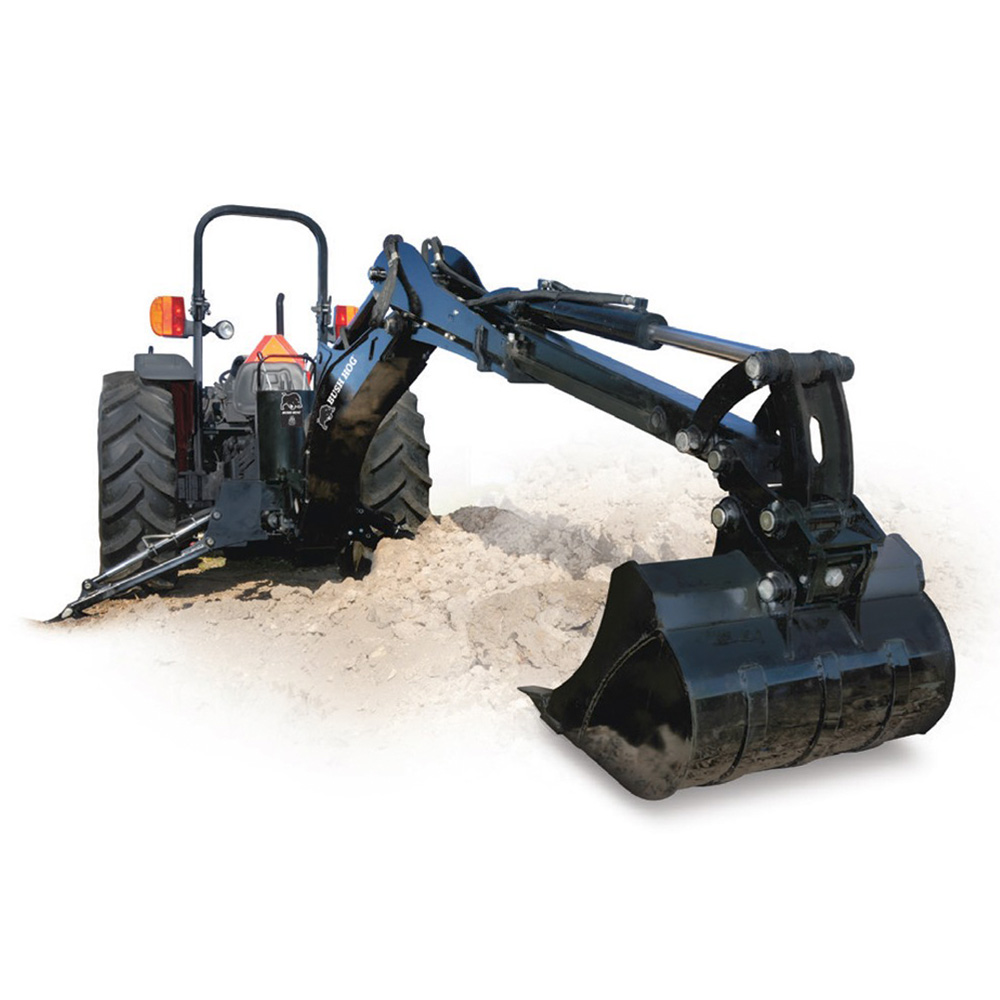

Bush Hog® XD95EL

Contact us for price

Stock status: Call Store for Availability

Break ground, not your back!

Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation.

The Bush Hog® digs even deeper with the Extendable XD95EL model. Capable of hydraulically extending an extra 24” to dig 11’ 4” deep, the extendable dipper stick gives you the extra reach when you need it. When contracted, the bucket and dipper stick curl up tight to the boom for easy travel and compact storage.

Text UsCall Us Now

Specs

Models
XD95EL
Transport Height (with boom fully retracted)
92”
Transport Width (with stabilizers up)
42½”
Loading Height (bucket at 60° rotation)
89”/104”
Ground Clearance
10½”
Transport Length
81”
Transport Weight (base unit only – no bucket or mounts)
1000 lbs.
Digging Depth (2 ft. flat bottom)
9’4”/11’4”
Overall Operating Height (fully raised)
135”/152”
Reach from Swing Post
141”164”
Bucket Rotation
180°
Swing Arc
180°
Stabilizer Width (Spread)
89”
Stabilizer Width (Transport)
42½”
Operating Pressure
2250 psi
SAE* Dipper Boom Digging Force
3100/2200 lbs..
SAE* Bucket Digging Force
3925 lbs..
Boom Lift Capacity (end of dipper 3’ from ground)
710/580 lbs.
Hydraulic Volume Requirements
5-7 gpm*
Flow Divider
Included
Recommended Tractor HP
45-100 HP
Recommended Skidsteer Requirements
45-100
Bucket Sizes Available
9, 12, 15, 18
3 Point Hitch
Cat I (PT300) / Cat II (PT322)
Cylinder Diameters
Main Boom Cylinder Diameter
3
Dipper Cylinder Diameter
2.25
Bucket Cylinder Diameter
2.5 (x1)
Swing Cylinder Diameter
2
Stabilizer Cylinder Diameter
3
Extender Cylinder Diameter
1.75
