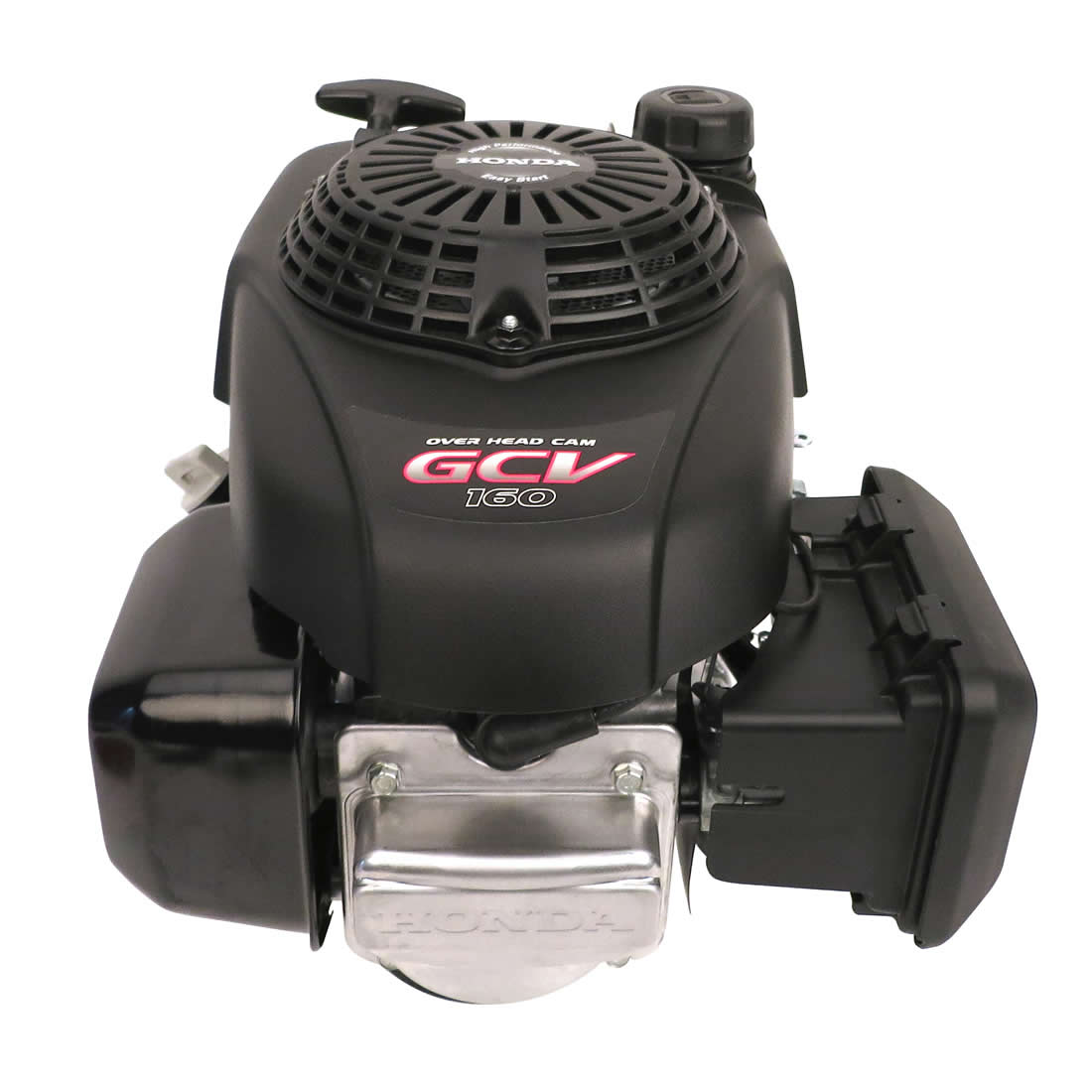

Honda GCV160/190

Contact us for price

Stock status: Call Store for Availability

GCV160/190

Quiet, Lightweight Reliable Power

Honda GCV engines offer a quiet, yet powerful and lightweight combination for a variety of demanding applications. Ideal for residential mowers and pressure washers, these engines pack a punch.

Common Applications
  • Pressure washers
  • Lawn mowers
  • Agricultural equipment
  • Forestry equipment
Text UsCall Us Now

Specs

SPECIFICATIONS

GCV160

GCV190

Engine Type Air-cooled 4-stroke OHC Air-cooled 4-stroke OHC
Bore x Stroke 2.5" x 2.0" (69 mm x 50 mm) 2.7" x 2.0" (69 mm x 50 mm)
Displacement 9.8 cu in (160 cm3) 11.4 cu in (187 cm3)
Net Power Output* 4.4HP (3.3 kW) @ 3600 rpm 5.1HP (3.8 kW) @ 3600 rpm
Net Torque 6.9 lb-ft (9.4 Nm) @ 2500 rpm 8.3 lb-ft (11.3 Nm) @ 2500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side) Counterclockwise (from PTO shaft side)
Compression Ratio 8.5:1 8.5:1
Carburetor Horizontal type butterfly valve Horizontal type butterfly valve
Ignition System Transistorized magneto Transistorized magneto
Starting System Recoil Recoil/electric
Air Cleaner Splash Dry (paper filter)
Governor System Centrifugal Mechanical Centrifugal Mechanical
Fuel Tank Capacity Dry (paper filter) 0.98 U.S. qts (.93 liter)
Fuel 0.58 US qt (0.55l) Unleaded 86 octane or higher
Oil Capacity 0.98 U.S. qts (.93 liter) 0.58 US qt (0.55l)
Lubrication System Unleaded 86 octane or higher Splash
Dry Weight 23.1 lbs (10.5 kg) 27.3 lbs (12.4 kg)
WARNING: California Prop 65 Info

DIMENSIONS

GCV160

GCV190

Length (min) 14.4" (367mm) 14.4" (367mm)
Width (min) 13.0" (331mm) 13.0" (331mm)
Height (min) 13.8" (349mm) 13.8" (349mm)

PTO

GCV160

GCV190

N1 Straight shaft View Details Straight shaft View Details
A2 Straight shaft View Details Straight shaft View Details
S3 Straight shaft View Details Straight shaft View Details
N5 Straight shaft View Details Straight shaft View Details
N7 Straight shaft View Details Straight shaft View Details
