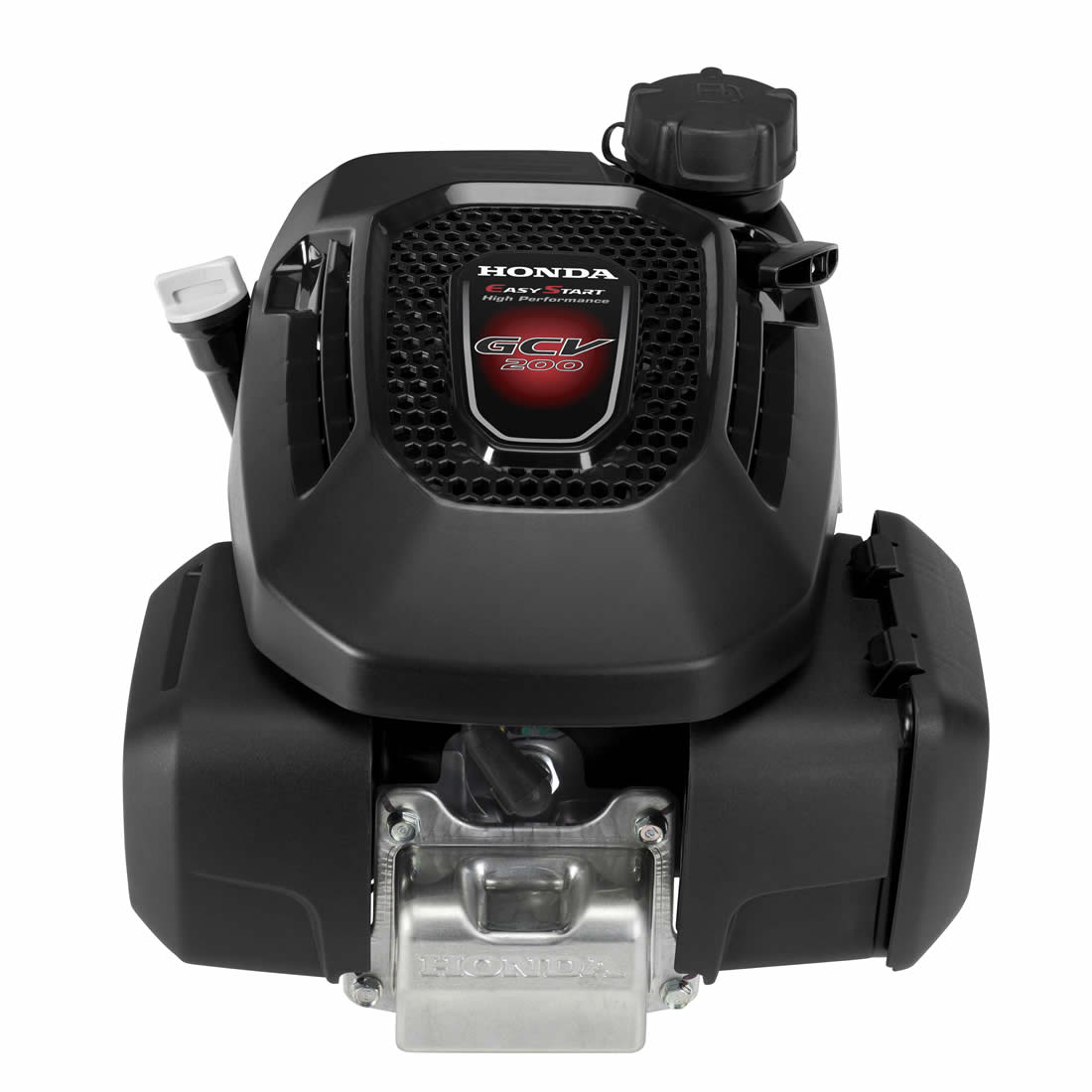

GCV200

Powerful, Simple, Reliable Power

The All-New GCV200 pressure washer engine delivers more power and more torque for premium residential applications, along with a range of technological attributes, innovative features and a simple design that make the new model even more reliable and easier to operate and maintain.

Common Applications
  • Pressure washers
Text UsCall Us Now

Specs

SPECIFICATIONS

GCV200
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 2.59" x 2.32" (66 mm x 59 mm)
Displacement 12.3 cu in (201 cm3)
Net Power Output* 5.6 HP (4.2kW) @ 3600 rpm
Net Torque 9.4 lb-ft (12.7 Nm) @ 2500 rpm
PTO Shaft Rotation Counterclockwise (from PTO shaft side)
Compression Ratio 8.0:1
Carburetor Horizontal type butterfly valve
Ignition System Transistorized magneto
Starting System Recoil
Air Cleaner Dry (paper filter)
Governor System Centrifugal Mechanical
Fuel Tank Capacity 0.24 U.S. gal (.99 liter)
Fuel Unleaded 86 octane or higher
Oil Capacity 0.42 US qt (0.41l)
Lubrication System Splash
Dry Weight 22.3 lbs (10.1 kg)
WARNING: California Prop 65 Info

DIMENSIONS

GCV200
Length (min) 16.3" (414mm)
Width (min) 13.0" (331mm)
Height (min) 13.1" (333mm)

PTO

GCV200
N5 Straight shaft View Details
