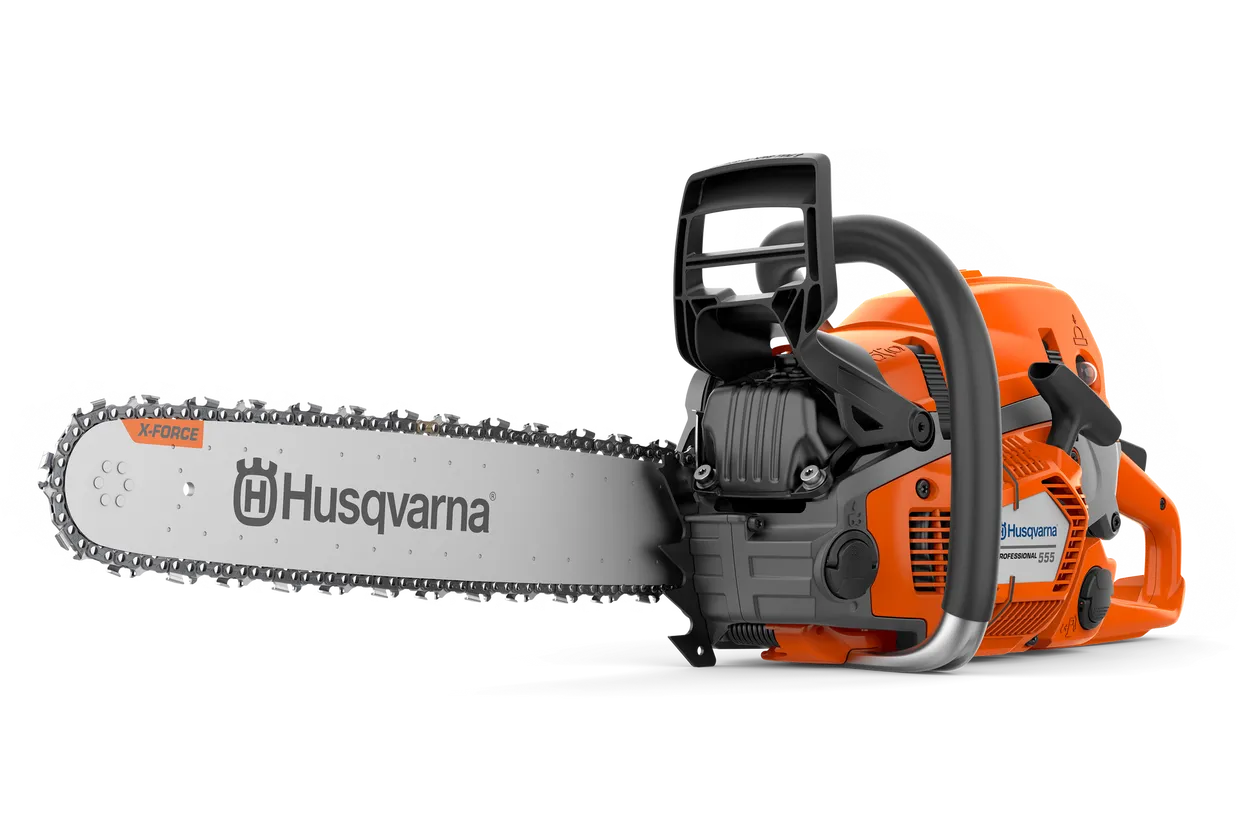

Husqvarna 555
Husqvarna 555
Husqvarna 555
Husqvarna 555
Husqvarna 555
Husqvarna 555
Husqvarna 555
Husqvarna 555

Husqvarna 555

$759.99*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

Husqvarna 555 is developed for demanding work by contractors and land owners. The saw has a ground breaking design and is loaded with raw power for efficient operation. Our unique X-Torq® engine technology provides more power where you need it, up to 20% less fuel consumption and 60% less exhaust emission.
Text UsCall Us Now

Specs

18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Engine

Output shaft power

1
4.16 hp
4.16 hp
4.16 hp
4.16 hp
4.16 hp
4.16 hp

Cylinder displacement

59.8 cm³
59.8 cm³
59.8 cm³
59.8 cm³
59.8 cm³
59.8 cm³

Torque, max.

3.51 Nm
3.51 Nm
3.51 Nm
3.51 Nm
3.51 Nm
3.51 Nm

Torque, max. at rpm

6,100 rpm
6,100 rpm
6,100 rpm
6,100 rpm
6,100 rpm
6,100 rpm

Chain speed at max power

69.9 fts
69.9 fts
69.9 fts
69.9 fts
69.9 fts
69.9 fts

Clutch engagement speed (±120)

4,300 rpm
4,300 rpm
4,300 rpm
4,300 rpm
4,300 rpm
4,300 rpm

Electrode gap

0.02 in
0.02 in
0.02 in
0.02 in
0.02 in
0.02 in

Idling speed

2,800 rpm
2,800 rpm
2,800 rpm
2,800 rpm
2,800 rpm
2,800 rpm

Ignition module air gap

0.01 in
0.01 in
0.01 in
0.01 in
0.01 in
0.01 in

Maximum power speed

9,600 rpm
9,600 rpm
9,600 rpm
9,600 rpm
9,600 rpm
9,600 rpm

Oil pump type

Adjustable flow
Adjustable flow
Adjustable flow
Adjustable flow
Adjustable flow
Adjustable flow

Spark Plug

NGK CMR6H
NGK CMR6H
NGK CMR6H
NGK CMR6H
NGK CMR6H
NGK CMR6H
18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Equipment

Recommended bar length, min

13 in
13 in
13 in
13 in
13 in
13 in

Pitch

3/8"
3/8"
3/8"
3/8"
3/8"
3/8"

Recommended bar length, max

24 in
24 in
24 in
24 in
24 in
24 in

Chain type

C83
C85
C83
C85
C83
C85

Bar length

45 cm
45 cm
50 cm
50 cm
60 cm
60 cm

Bar length (inch)

18 in
18 in
20 in
20 in
24 in
24 in

Sprocket type

Rim 7
Rim 7
Rim 7
Rim 7
Rim 7
Rim 7

Gauge

.050"
.058"
.050"
.058"
.050"
.058"
18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Dimensions

Weight (excl. cutting equipment)

13.01 lbs
13.01 lbs
13.01 lbs
13.01 lbs
13.01 lbs
13.01 lbs
18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Sound and noise

Sound pressure level at operators ear (LpA)

106 dB(A)
106 dB(A)
106 dB(A)
106 dB(A)
106 dB(A)
106 dB(A)

Sound power level, guaranteed (LWA)

115 dB(A)
115 dB(A)
115 dB(A)
115 dB(A)
115 dB(A)
115 dB(A)

Sound power level, measured

114 dB(A)
114 dB(A)
114 dB(A)
114 dB(A)
114 dB(A)
114 dB(A)
18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Vibration

Equivalent vibration level (ahv, eq) rear handle

5 m/s²
5 m/s²
5 m/s²
5 m/s²
5 m/s²
5 m/s²

Equivalent vibration level (ahv, eq) front handle

3.2 m/s²
3.2 m/s²
3.2 m/s²
3.2 m/s²
3.2 m/s²
3.2 m/s²
18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Lubricant

Oil tank volume

0.7 US pint
0.7 US pint
0.7 US pint
0.7 US pint
0.7 US pint
0.7 US pint

Lubricant type (Engine)

Husqvarna 2 stroke or equiv. at 50:1
Husqvarna 2 stroke or equiv. at 50:1
Husqvarna 2 stroke or equiv. at 50:1
Husqvarna 2 stroke or equiv. at 50:1
Husqvarna 2 stroke or equiv. at 50:1
Husqvarna 2 stroke or equiv. at 50:1
18" RSN 3/8" 1,3 mm C83
970 50 14‑04
18" RSN 3/8" 1,5 mm C85
970 50 14‑05
20" RSN 3/8" 1,3 mm C83
970 50 14‑06
20" RSN 3/8" 1,5 mm C85
970 50 14‑07
24" RSN 3/8" 1,3 mm C83
970 50 14‑08
24" RSN 3/8" 1,5 mm C85
970 50 14‑09
Emission

Exhaust emissions (CO₂ EU V)

2
819 g/kWh
819 g/kWh
819 g/kWh
819 g/kWh
819 g/kWh
819 g/kWh
