Contact us for price

Stock status: Call Store for Availability

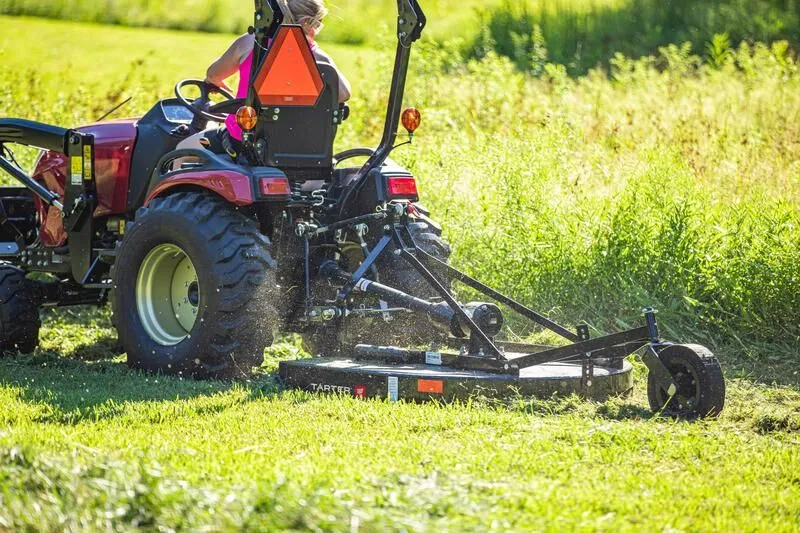

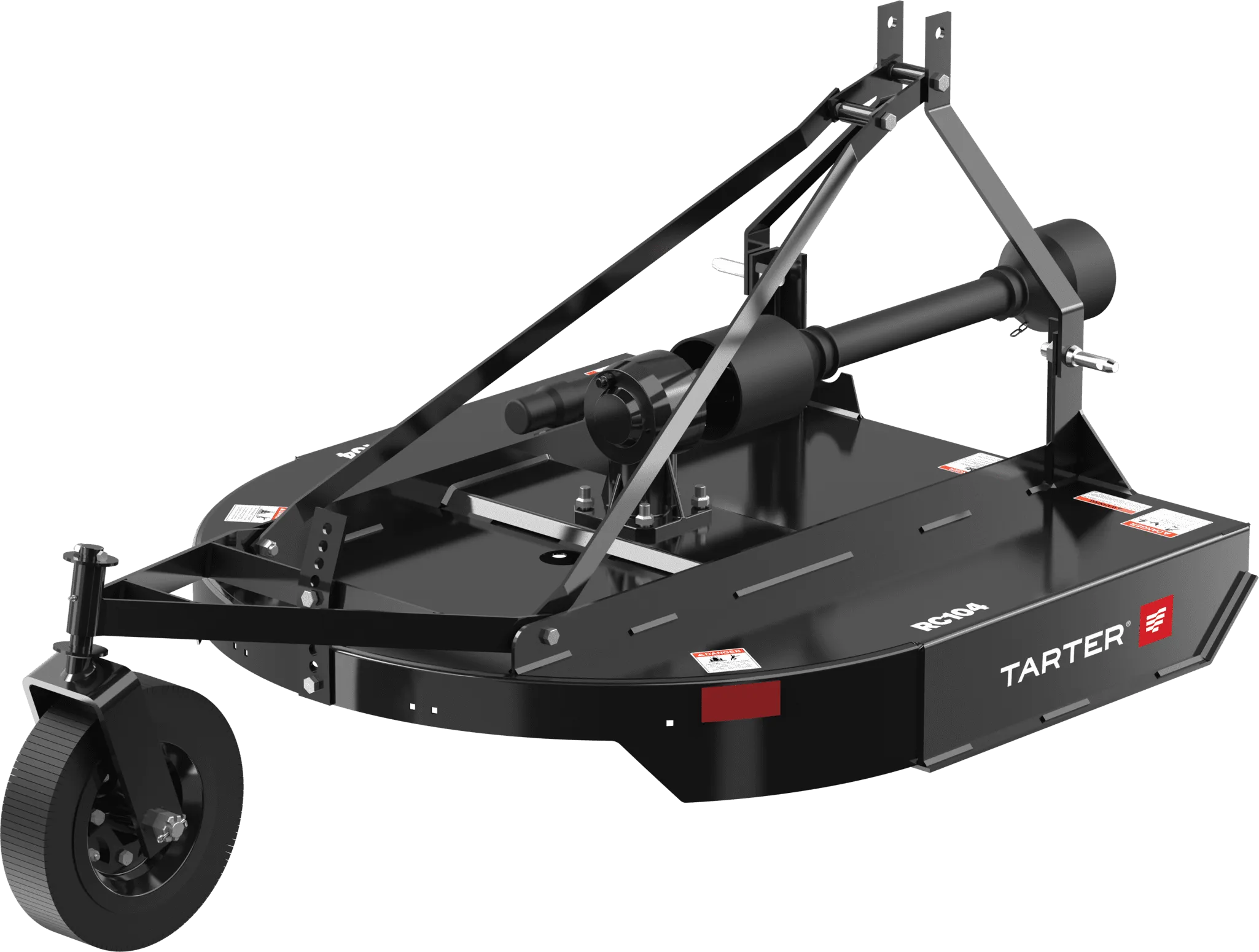

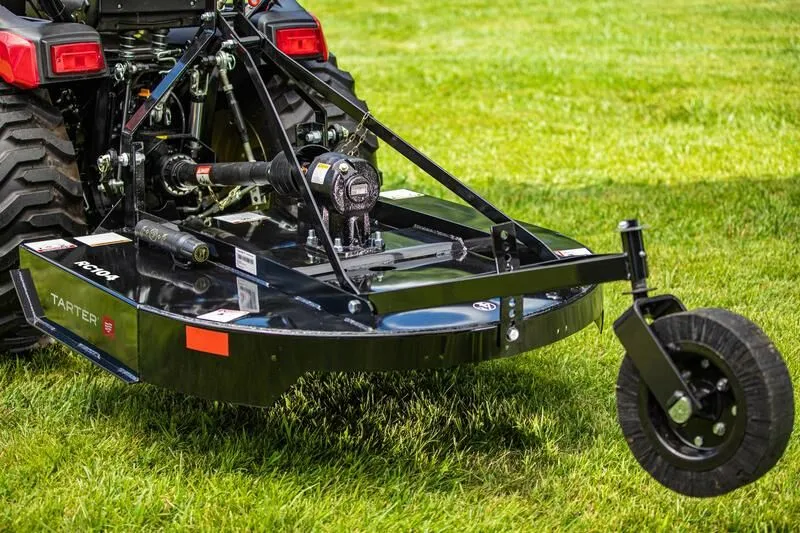

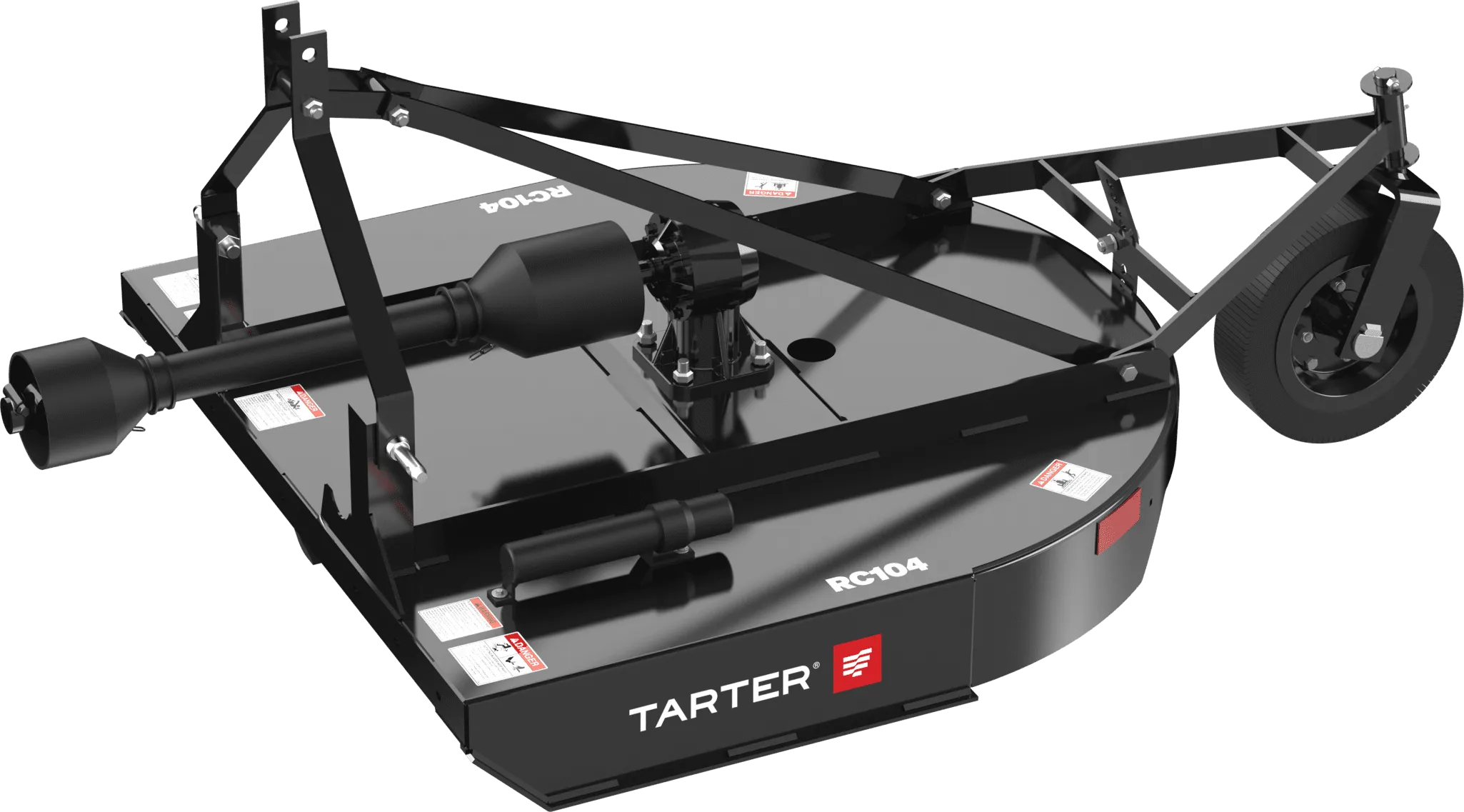

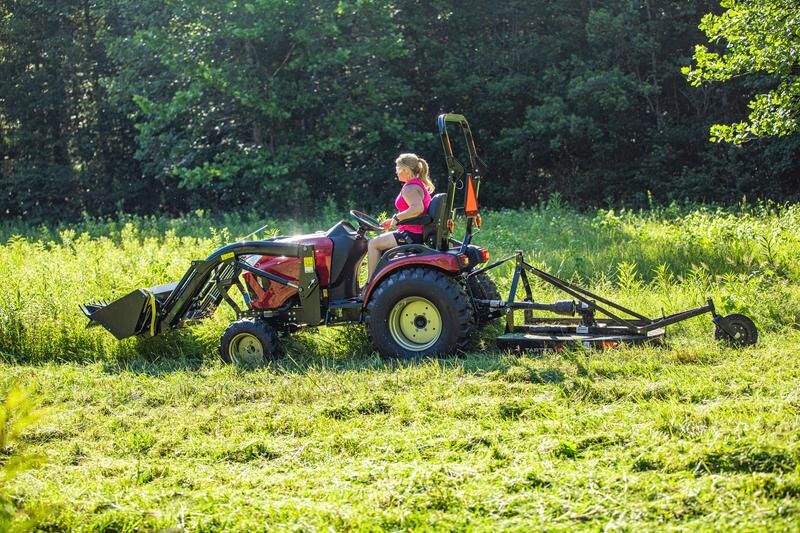

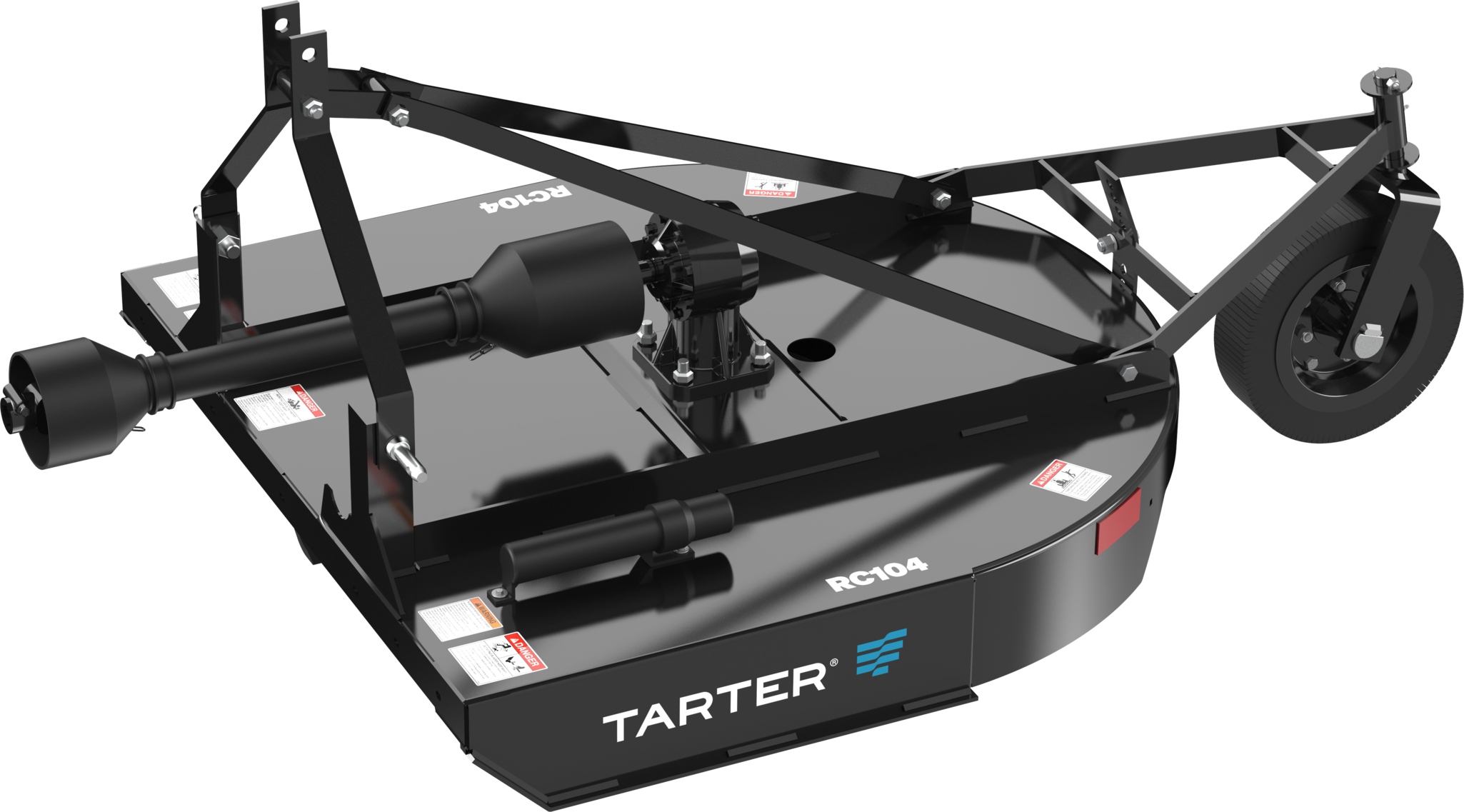

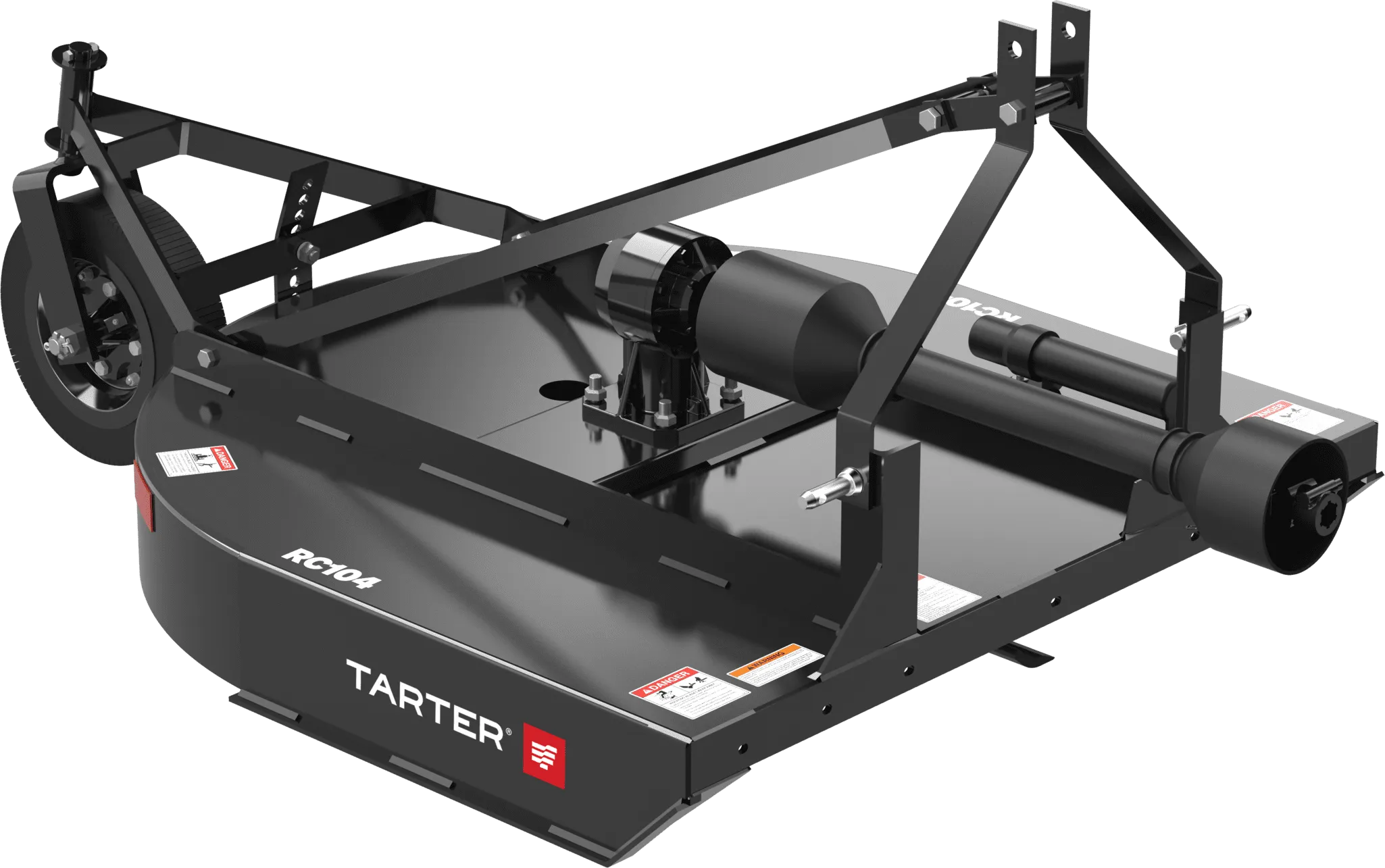

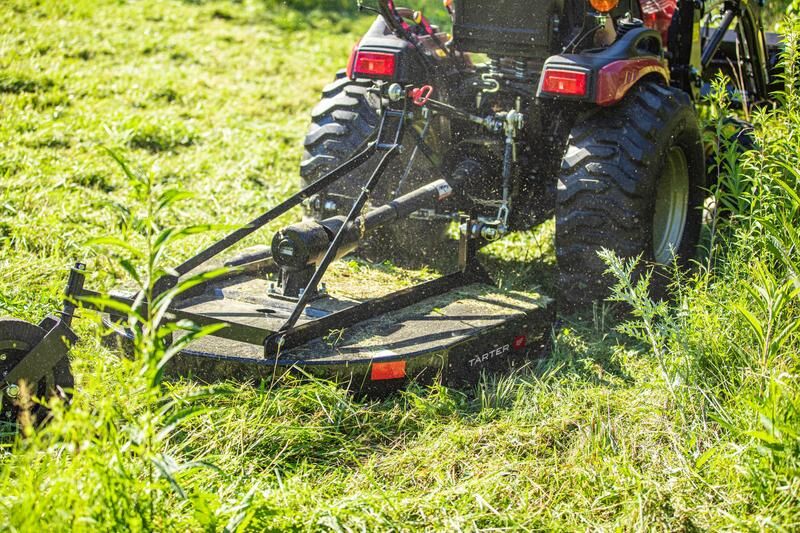

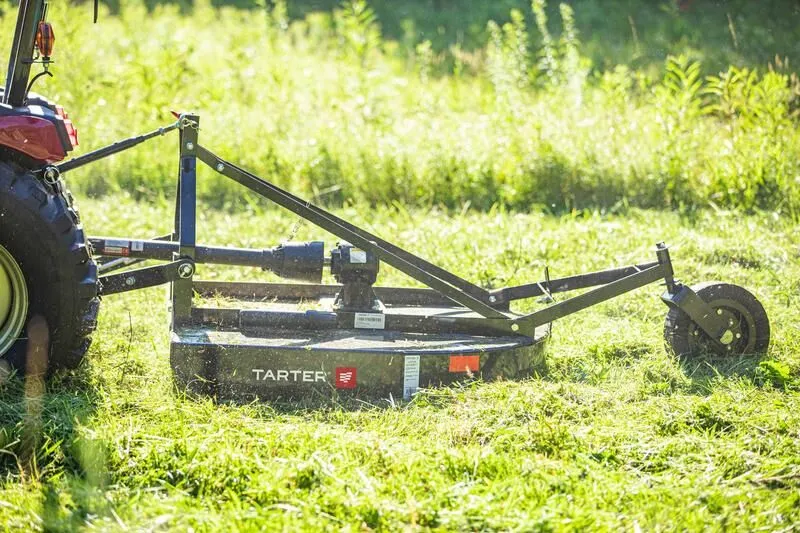

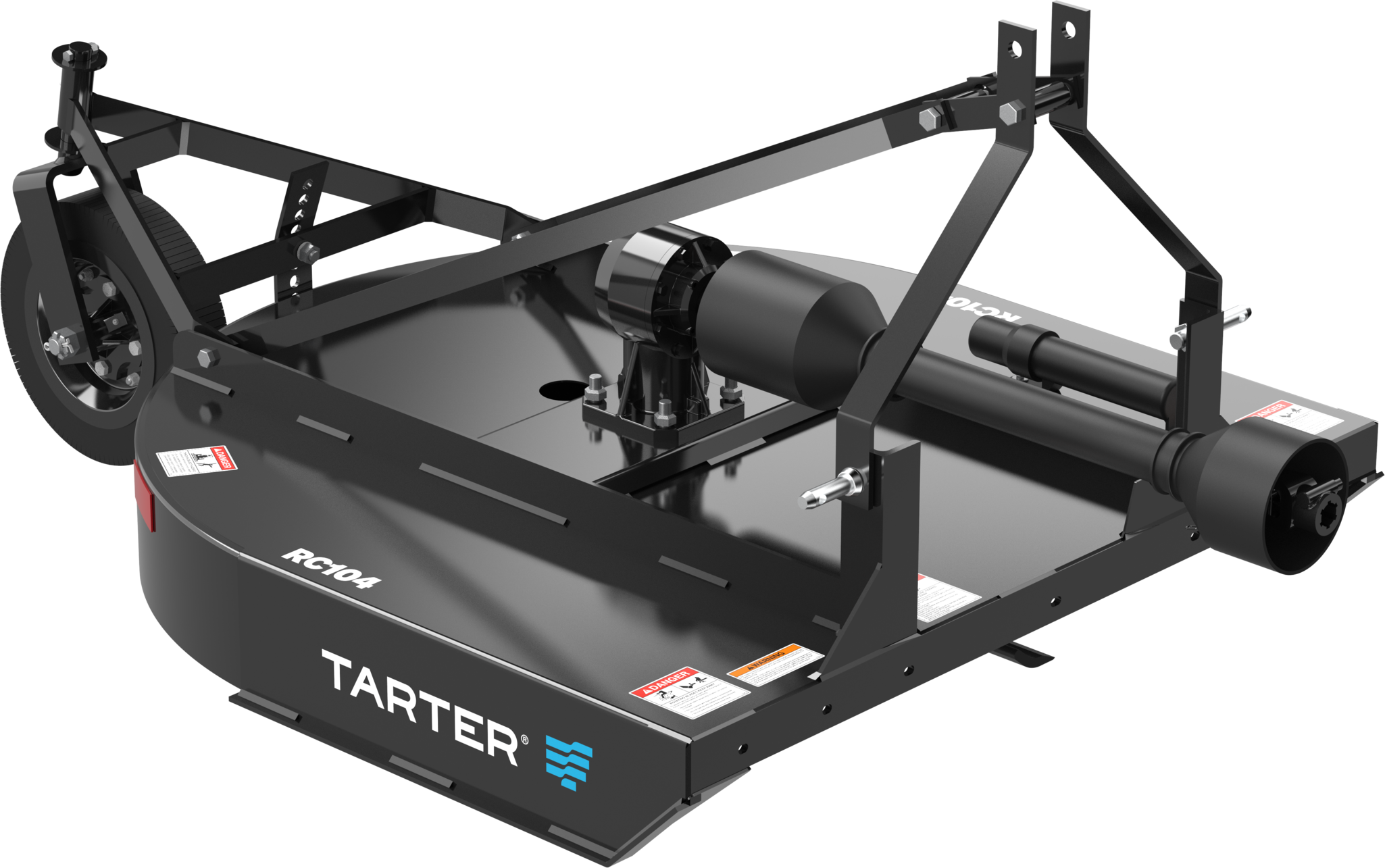

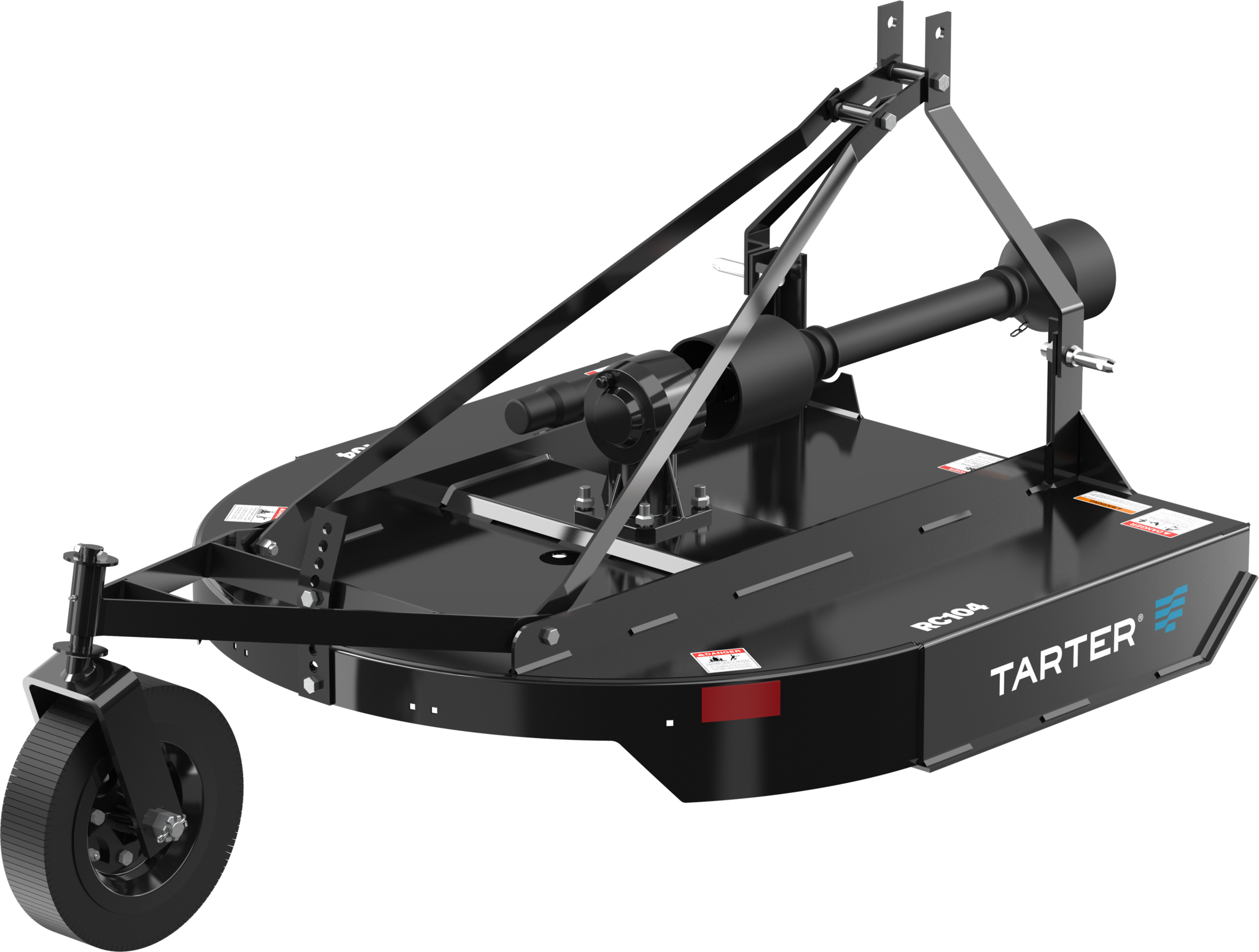

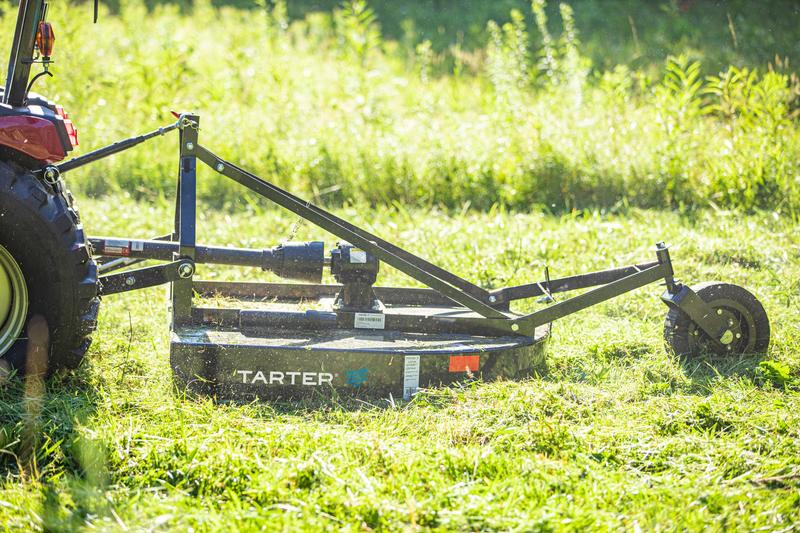

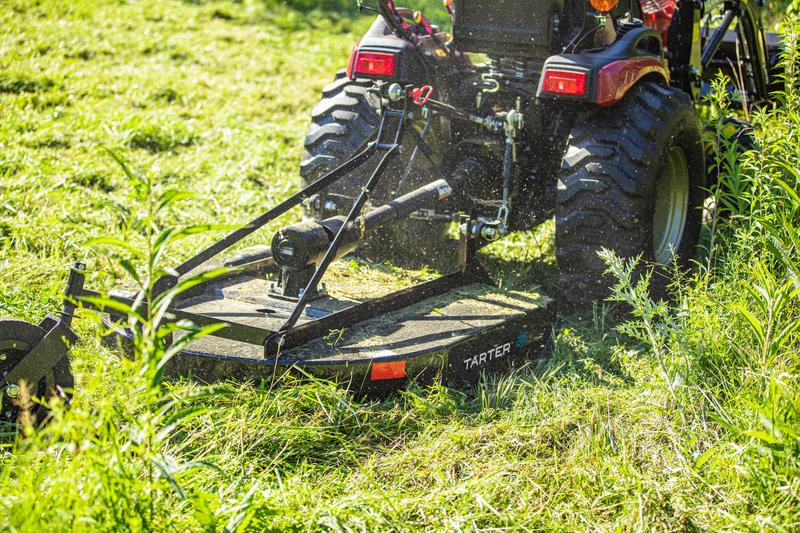

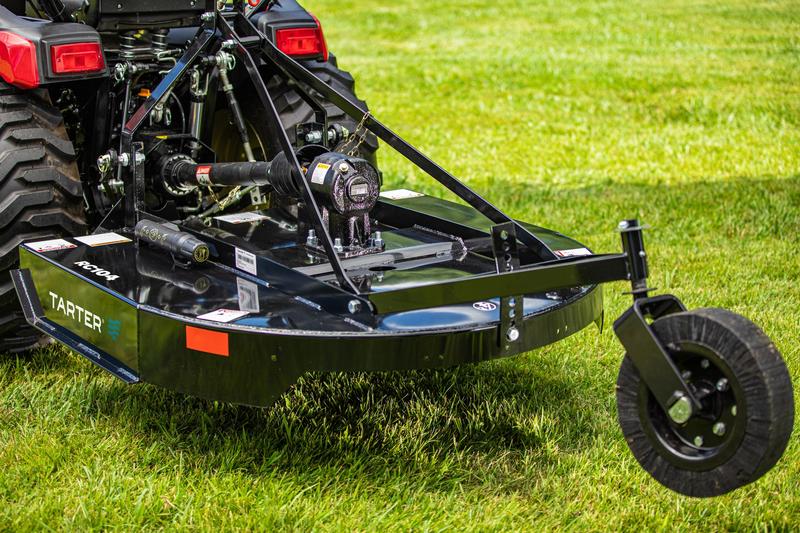

The Tarter 100 Series 4′ Rotary Cutter is the perfect solution for mowing backfields, creating riding and walking trails, and clearing paths for wildlife management. Cut grass, stalks, and light brush up to 1″ thick with ease. The thick 12GA deck is 7.5″ deep.

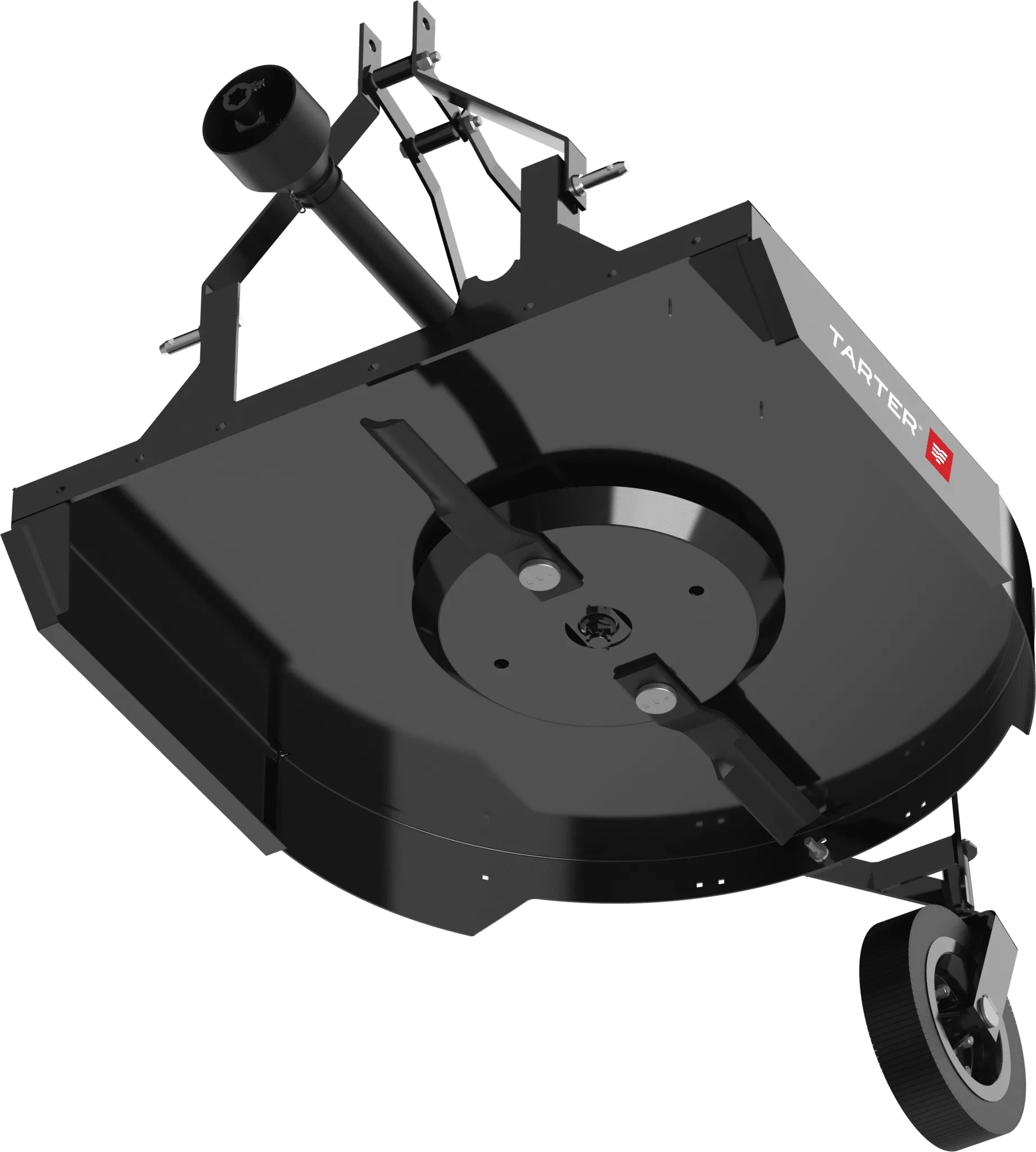

By adjusting the laminated tailwheel height your length of cut can range from 1.5 – 9″. The durable heat-treated blades pivot on the 1/8″ thick steel stump jumper to protect the cutter from unseen obstacles, avoiding damage to the gearbox and blades.

The 45 HP cast iron gearbox contains forged steel gears and features shear bolt protection for the driveline.

This rotary cutter is Cat 1 and Quick Hitch compatible and ideally suited to tractors 18-45 PTO HP. Optional rubber front and metal rear guards available.



Text UsCall Us Now

Specs

Tractor Horsepower: 18-45
Power Take-off Speed: 540
Hitch Type : Cat 1
Cutting Width : 48 in.
Cutting Height: 1.5-9 in.
Deck Height: 7.5 in.
Driveline: ASAE Cat 4 Shear Bolt Protection
Driveline Protection Options : Shear Bolt
Top Gearbox Construction: 45 hp cast iron housing, precision forged steel gears
Top Gearbox Lubrication: EP 80-90W gear oil
Gearbox Lubrication Capacity: 23 ounces
Cutting Capacity: up to 1 in.
Stump Jumper: 1/8 in. Thick, Round 22.3 in. pan-type
Blades: 0.5 in. x3 in. Heat Treated Free Swinging w/ Suction Lift.
Blade Tip Speed: 9,982 ft./min.
Tailwheel : 15 in. Laminated Tire
Safety Guards : Optional Rubber Front/ Metal Rear
Blade Bolt Size: 42mm socket
Shear Bolt: 0.5 in. x 3.5 in. Grd 2 Hex Bolt
Castle Nut On Gearbox: 38mm socket
Warranty: 1 Year
Part: RC104BL
Length: 77 in.
Width: 51 in.
Iconic Cffv 6306 Approx Weight: 463 lbs
Color: BLACK
Deck Material Thickness: 12 Ga.
Quick Hitch Compatible: Yes
