Specs

Drivetrain

1) Engine: Honda GVX390

• Oil: 1.1 Quart 10w-30
• Single cylinder 4-stroke gasoline engine.
• 390cc Displacement
• 17.8lb-ft Torque
• Splash/Pressure Lubrication
• Recoil Start

2) Transmission: Hydrostatic Tuff Torq K62

• Power Forward/Reverse
• Oil: 10w-30
• Torque Rating: 217lb-ft
• Top Speed 4.5MPH
• Locking Differential

3) Attachment Power: Mechanical Clutch/Brake to belt drive. NORAM Clutch.

• Belt Drive From Clutch to Reduction Gearbox
• #50 Chain Drive From Gearbox to Rake Rotor

Frame Specs

1) Schedule 40 welded steel tube

2) Powder Coated Frame

3) Multi-use Tractor can be used for other attachments

Machine Features

1) Transmission features differential lock

2) Max Digging Depth – 2” below surface

3) Liquid ballast filled drive tires

4) 2.5 Gallon Fuel Tank.

Rake Specifications

1) 36” Wide Drum

2) Pivots – 32 degrees of total movement

• Pivot controlled by hand Trigger at Operator Station

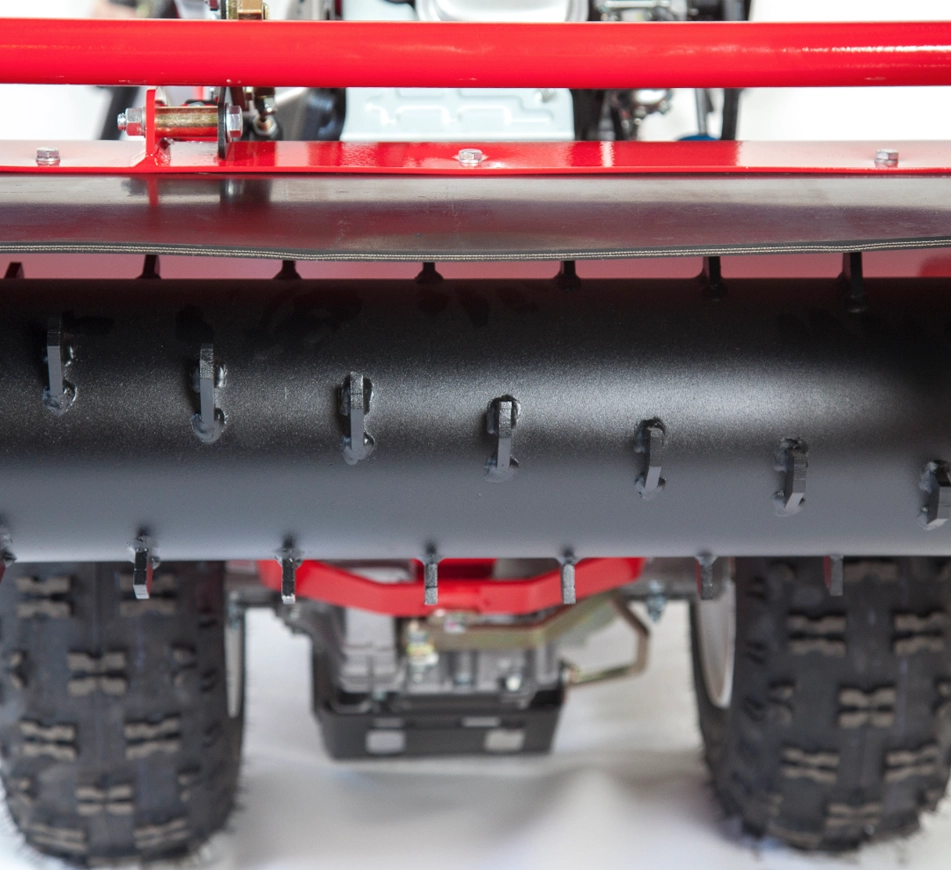

3) Rotor Specs

• Tungston Carbide Rotor Teeth
• 48 Teeth Per rotor
• 6” Rotor Diameter

Machine Dimensions

1) 485 LBS Curb Weight

2) 74”L x 44”W x 44”H
