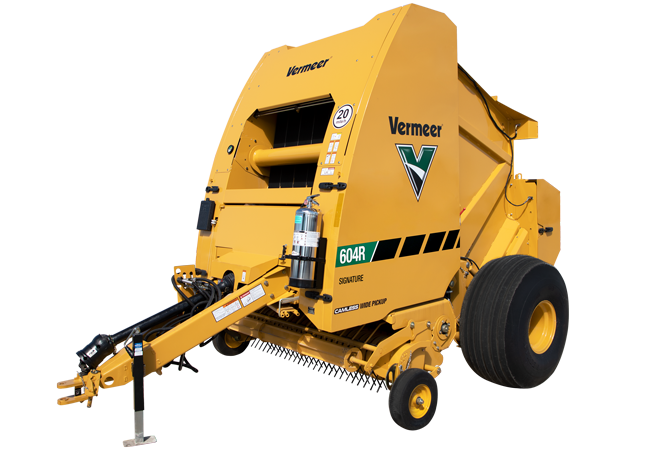

Vermeer 604R Signature Baler

Vermeer 604R Signature Baler

Contact us for price

Stock status: Call Store for Availability

What does your 604R Signature baler say about you? That you value bale appearance and want consistent, square-shouldered bales. That you value simplicity and durability and want a pickup that’s built for a variety of applications. That you value convenient features that allow you to control your baler and ultimately create good-looking, high-density bales. And that you value convenience and want smart features that help make your operation more efficient—like the Atlas Pro™ control system. A Signature says it all.

Text UsCall Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
    • Bale Width 47 in 119.4 cm
    • Maximum bale weight 2400 lbs 1088.6 kg

  • Dimensions and Weights

    • Length standard 164 in 416.6 cm
    • Length with net 184 in 467.4 cm
    • Length with ramp 206 in 523.2 cm
    • Height 121 in 307.3 cm
    • Width with standard tires 101 in 256.5 cm
    • Width with optional tires 115 in 292.1 cm
    • Tires Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire
    • Weight fully optioned 7280 lbs 3302.2 kg

  • Bale Forming Chamber

    • Drive Roller Size 5.5 in (14 cm)
    • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
    • Start Roller Size 5.3 in 13.3 cm
    • Belt Type Premium mini rough top
    • Number of Belts 6
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 563.5 in 1431.3 cm
    • Length of belt (short) 557 in 1414.8 cm
    • Type of Lace Alligator rivet
    • Silage kit Optional

  • Drive System

    • Driveline Standard: 540 rpm, standard lube, friction clutch; Optional: 1000 rpm, standard lube, automatic clutch
    • Torque protection pickup Radial pin clutch
    • Roller chains Single 60 and 80
    • Bearing and Sprocket Configuration Hex drive shafts and bearings

  • Tractor Requirements

    • PTO horsepower minimum 70 hp 52.2 kw
    • PTO horsepower recommended 90 hp 67.1 kw

  • Pickup

    • Pickup type Camless wide
    • Width tooth to tooth 70.5 in 179.1 cm
    • Width on outside flair 73.8 in 187.5 cm
    • Tooth Bars 5
    • Number of Teeth (70) double rubber-mounted
    • Teeth spacing 2.83 in (7.2 cm)
    • Stripper bands Steel
    • Flotation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic
    • 3-year pickup warranty Standard

  • Control system

    • Control system type Atlas Pro™ control system
    • Display 7 in (17.8 cm) color touch screen
    • Field Statistics 50 fields with names
    • Field statistics download USB
    • Bale shape indicators Standard
    • Moisture Standard - up to 27%
    • Bales per hour Standard
    • Auto eject Optional

  • Density

    • Bale density adjustments Standard through control system monitor
    • Density readings Digital gauge
    • Cylinder size 2.5 in (6.4 cm)

  • Bale tie system

    • Twine system Optional
    • Netwrap system Optional
    • Net gauge via control system Standard
    • Net tension control via control system
    • Netlift system Optional
    • Extra roll storage Standard

  • Features

    • Bale ramp Hydraulic
    • Auto Lube greasing system Optional
    • Grease bank Standard
    • Right-hand door Standard
    • LED maintenance lights Optional
    • Fire extinguisher, safety chain Optional
