Specs

• Dimensions and Weights

  • Raking width minimum 18 ft 5.5 m
  • Raking width maximum 23 ft 7 m
  • Windrow width minimum 36 in 91.4 cm
  • Windrow width maximum 72 in 182.9 cm
  • Transport Width 8.4 ft 2.6 m
  • Transport Length 21.8 ft 6.6 m
  • Transport Height 5.9 ft 1.8 m
  • Total Weight 3220 lbs 1460.6 kg
  • Tongue Weight 1400 lbs 635 kg
  • Transport tire size ST205/75D15
  • Drive Hydraulic

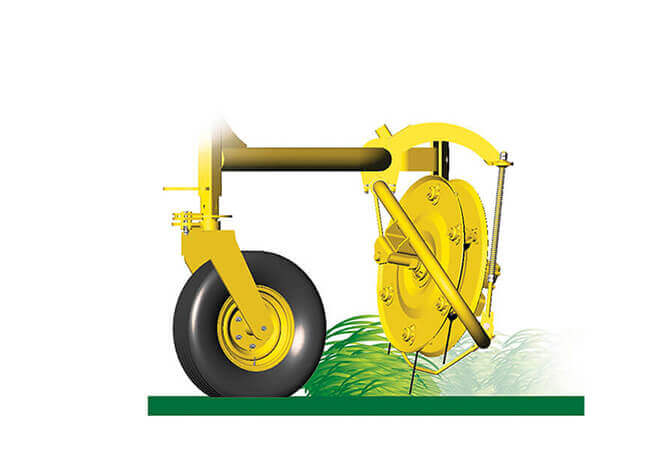

• Raking components

  • Tines per basket 120
  • Bars per basket 6
  • Basket length 9.5 ft 2.9 m

• Tractor Requirements

  • PTO horsepower minimum 35 hp 26.1 kw
  • Hydraulic Type 2 double-acting
  • Hydraulic Pressure 1800 psi 124.1 bar
  • Hydraulic flow rate 8 gpm 30.3 L/min

• Features

  • Highway Lights Optional
  • Center splitter Optional powered
