Vermeer TD100 Tedder
Vermeer TD100 Tedder
Vermeer TD100 Tedder
Vermeer TD100 Tedder
Vermeer TD100 Tedder
Vermeer TD100 Tedder

Vermeer TD100 Tedder

Contact us for price

Stock status: Call Store for Availability

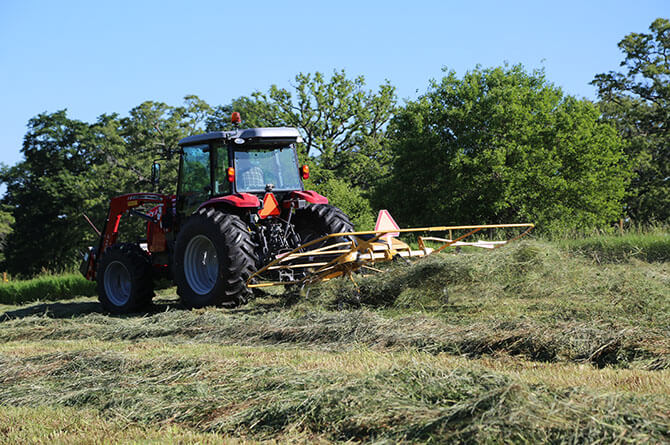

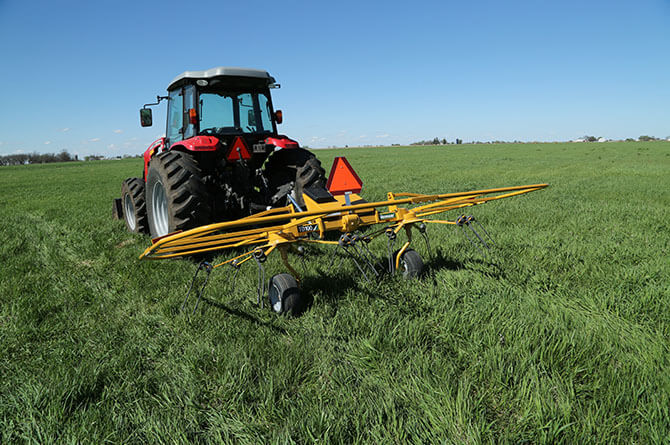

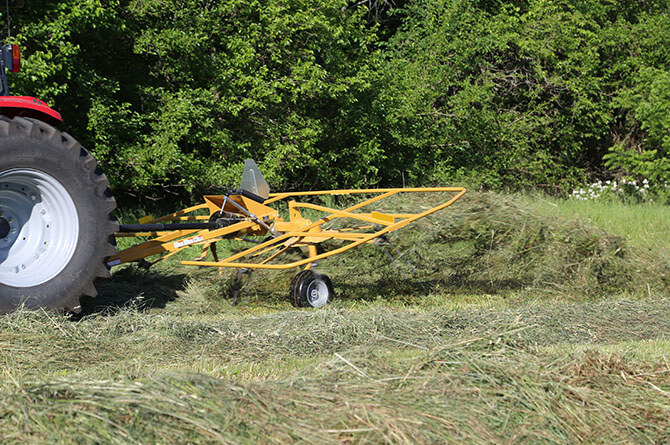

Why ted? To take control of dry-down time and maximize the quality of your hay and forage. Why ted with the TD100 tedder? Because it’s the economical, no-frills tedder you’ve been searching for. It delivers a compact 10-ft (3-m) tedding width with two rotors for smooth, gentle handling at maximum ground speeds — even when handling heavy, matted-down windrows.

Text UsCall Us Now

Specs

  • Dimensions and Weights

    • Tedding width 10 ft 3 m
    • Transport Height 8.8 ft 2.7 m
    • Transport Width 11.6 ft 3.5 m
    • Transport Length 10.4 ft 3.2 m
    • Total Weight 670 lbs 303.9 kg
    • Tongue Weight 88 lbs 39.9 kg
    • Tire size 16 x 6.5-8
    • Basket tilt and adjustment Manual crank
    • Number of Baskets 2
    • Tine Arms per Basket 6
    • Type of Tine Straight tine
    • Torque protection driveline Radial pin clutch

  • Tractor Requirements

    • PTO Horsepower Requirements 15 hp 11.2 kw
    • Hitch Drawbar clevis connection
    • Drive PTO 540 rpm

  • Features

    • SMV Sign Standard
