Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder
Vermeer TD190 Tedder

Vermeer TD190 Tedder

Contact us for price

Stock status: Call Store for Availability

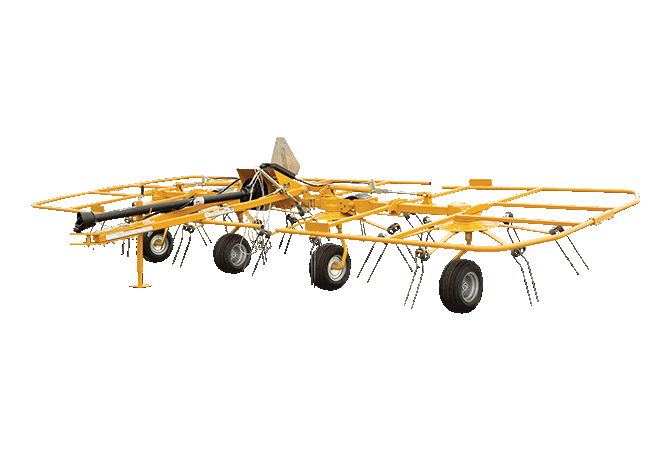

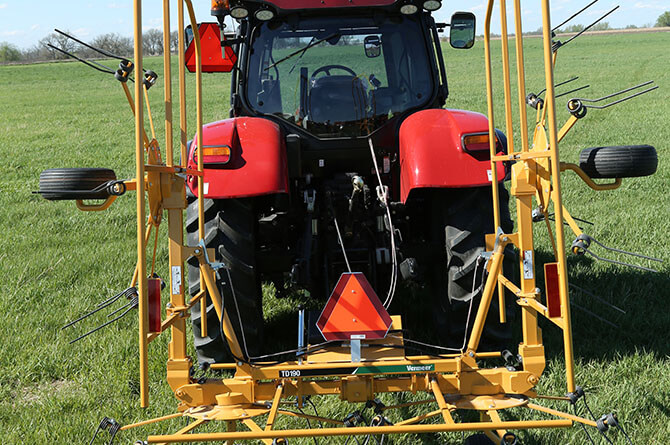

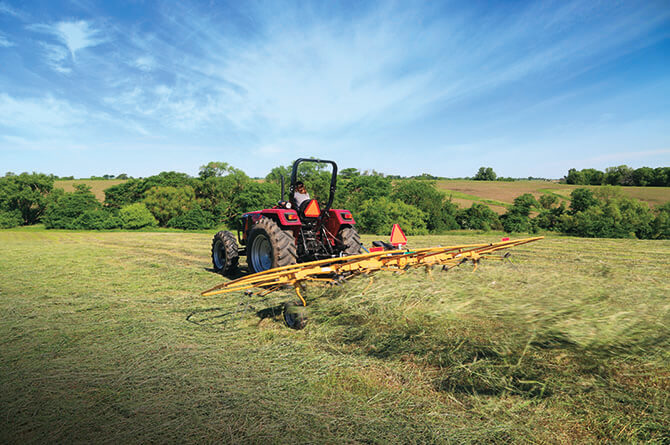

A tedder that’s up for tall tasks in the field. The TD190 tedder teds at 19 ft (5.8 m) to help bolster productivity and get you on to other jobs. Equipped with four rotors, it handles material smoothly at maximum ground speeds. Handling heavy, matted-down windrows? It’s built for that. Need to move quickly between fields? Hydraulic folding leads to quick, convenient transport. Now that’s smooth.

Text UsCall Us Now

Specs

  • Dimensions and Weights

    • Tedding width 19 ft 5.8 m
    • Transport Height 11 ft 3.4 m
    • Transport Width 10.9 ft 3.3 m
    • Transport Length 10.4 ft 3.2 m
    • Total Weight 1225 lbs 555.7 kg
    • Tongue Weight 132 lbs 59.9 kg

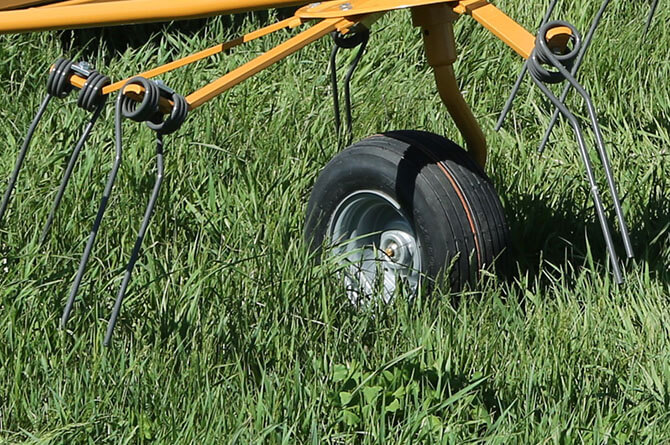

    • Tire size 16 x 6.5-8
    • Basket tilt and adjustment Manual crank
    • Number of Baskets 4
    • Tine Arms per Basket 6

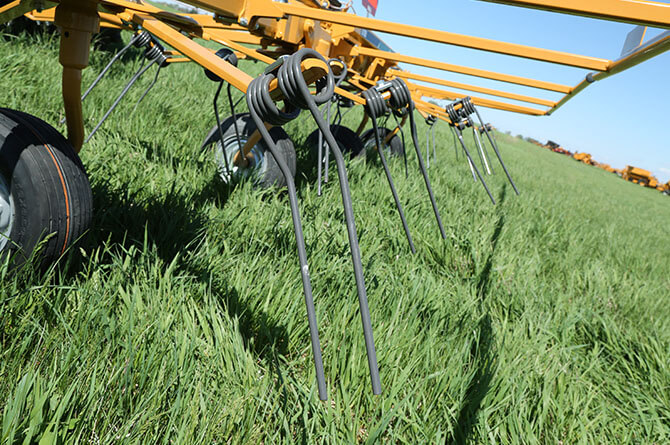

    • Type of Tine Straight tine
    • Torque protection driveline Radial pin clutch

  • Tractor Requirements

    • PTO Horsepower Requirements 25 hp 18.6 kw
    • Hydraulic requirements 1 single-acting
    • Hydraulic pressure minimum 1500 psi 103.4 bar
    • Hitch Drawbar clevis connection
    • Drive PTO 540 rpm

  • Features

    • SMV Sign Standard
