Specs

• Dimensions and Weights

  • Raking width minimum 19.9 ft 6.1 m
  • Raking width maximum 24.4 ft 7.4 m
  • Windrow width minimum 21 in 53.3 cm
  • Windrow width maximum 98 in 248.9 cm
  • Transport Width 10.2 ft 3.1 m
  • Transport Length 23 ft 7 m
  • Transport Height 8.5 ft 2.6 m
  • Total Weight 1812 lbs 821.9 kg
  • Tongue Weight 230 lbs 104.3 kg
  • Transport tire size ST205/75D15
  • Flotation Rubber torsion on toolbar

• Raking components

  • Number of Rake Wheels 12
  • Rake wheel diameter 55 in 139.7 cm
  • Teeth per wheel 40
  • Tooth diameter .3 in .8 cm
  • Rake wheel wind discs Optional
  • Single-side raking Standard left- or right-side capable

• Tractor Requirements

  • PTO horsepower minimum 30 hp 22.4 kw
  • Hydraulic Type 1 double-acting
  • Hydraulic Pressure 1500 psi 103.4 bar
  • Hydraulic flow rate 5 gpm 18.9 L/min

• Features

  • Safety Chain Optional

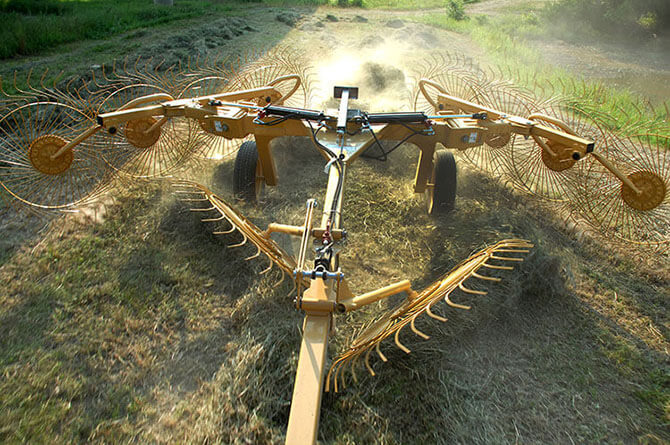

  • Center splitter Optional
