Contact us for price

Stock status: Call Store for Availability

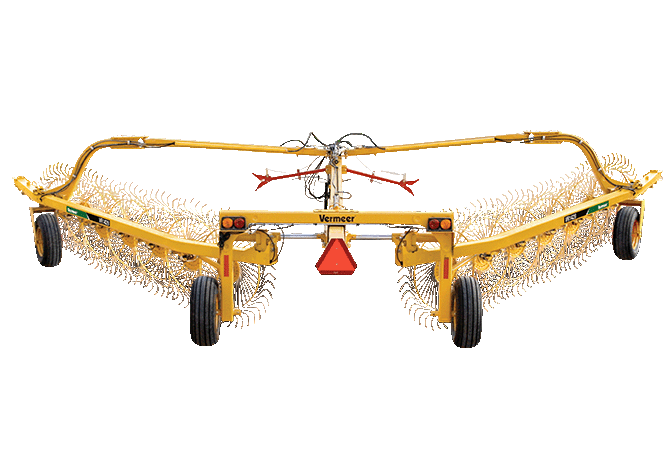

The heavy-duty VR1428 high-capacity wheel rake is capable of raking 28 ft (8.5 m) wide in one pass – yet nimble enough to maneuver like rakes much smaller in size. It offers producers more capacity and the ability to handle more acres in less time, with fewer maintenance issues by combining rugged construction, smart, streamlined design and functionality with simple, tool-free adjustments.

Text UsCall Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 22 ft 6.7 m
    • Raking width maximum 28 ft 8.5 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 10.5 ft 3.2 m
    • Transport Length 31.1 ft 9.5 m
    • Transport Height 6.3 ft 1.9 m
    • Total Weight 5040 lbs 2286.1 kg
    • Tongue Weight 1300 lbs 589.7 kg
    • Transport tire size 11L-15
    • Flotation Hydraulic
    • Drive Hydraulic

  • Raking components

    • Number of Rake Wheels 14
    • Rake wheel diameter 55 in 139.7 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional

  • Tractor Requirements

    • PTO horsepower minimum 40 hp 29.8 kw
    • Hydraulic Type 3 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min

  • Features

    • Highway Lights Standard
    • Safety Chain Optional
    • Center splitter Optional
