Vermeer VR2040 High-Capacity Wheel Rake
Vermeer VR2040 High-Capacity Wheel Rake
Vermeer VR2040 High-Capacity Wheel Rake
Vermeer VR2040 High-Capacity Wheel Rake

Vermeer VR2040 High-Capacity Wheel Rake

Contact us for price

Stock status: Call Store for Availability

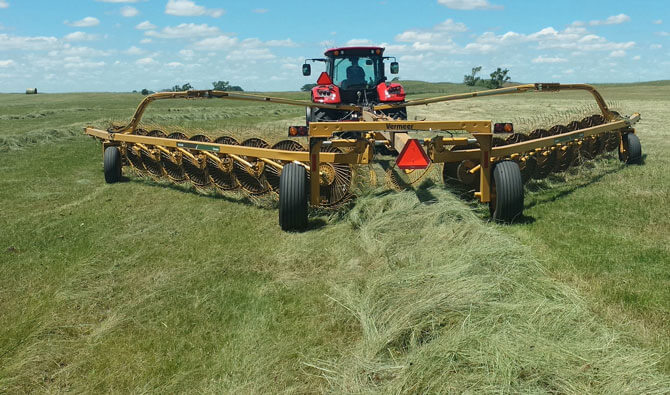

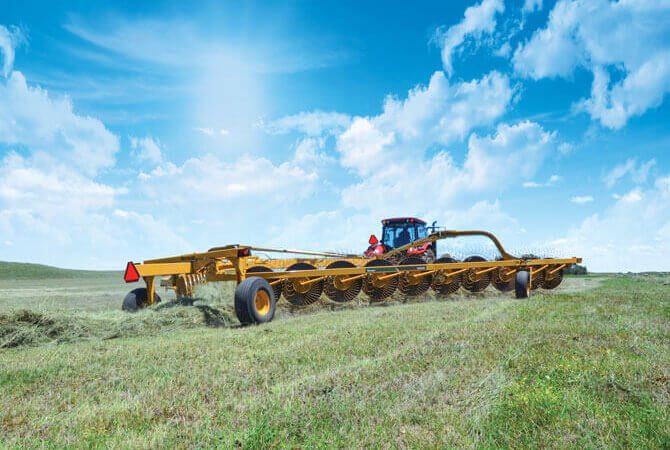

Harness the power and innovation of the Vermeer high-capacity wheel rake in an even larger package with the VR2040 high-capacity wheel rake. A 40-ft (12.2-m) raking width and unique wheel suspension system offer maximum efficiency and raking power. Cover more acres in less time – and with minimal maintenance – with the rugged VR2040 high-capacity wheel rake.

Text UsCall Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 25 ft 7.6 m
    • Raking width maximum 40 ft 12.2 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 12 ft 3.7 m
    • Transport Length 38 ft 11.6 m
    • Transport Height 6.3 ft 1.9 m
    • Total Weight 6780 lbs 3075.4 kg
    • Tongue Weight 1840 lbs 834.6 kg
    • Transport tire size 14L x 16.1
    • Flotation Hydraulic
    • Drive Hydraulic

  • Raking components

    • Number of Rake Wheels 20
    • Rake wheel diameter 55 in 139.7 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional

  • Tractor Requirements

    • PTO horsepower minimum 60 hp 44.7 kw
    • Hydraulic Type 3 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min

  • Features

    • Highway Lights Standard
    • Safety Chain Optional
    • Center splitter Optional
