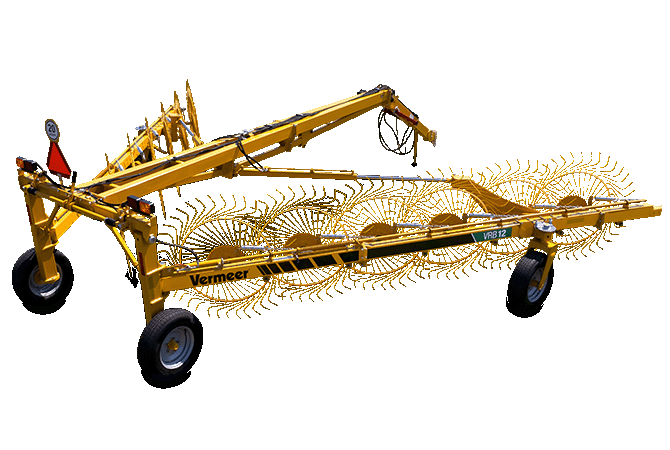

Vermeer VRB12 High-Capacity Bifold Wheel Rake

Vermeer VRB12 High-Capacity Bifold Wheel Rake

Contact us for price

Stock status: Call Store for Availability

The Vermeer VRB12 high-capacity bifold wheel rake combines durability and versatility into a cost-effective package, with 12 wheels and a 25-foot (7.6-m) raking width. The bifold frame is designed for optimal ground clearance to help you maximize productivity, while the standard 60-in (152-cm) rake wheels maximize performance in heavy crops.

Text UsCall Us Now

Specs

  • Dimensions and Weights

    • Raking width maximum 25 ft 7.6 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 8.3 ft 2.5 m
    • Transport Length 24.8 ft 7.6 m
    • Transport Height 6.4 ft 2 m
    • Total Weight 3820 lbs 1732.7 kg
    • Tongue Weight 1367 lbs 620.1 kg
    • Transport tire size 205/75-R15
    • Flotation Steep spring on individual rake wheel

  • Raking components

    • Number of Rake Wheels 12
    • Rake wheel diameter 60 in 152.4 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Optional

  • Tractor Requirements

    • PTO horsepower minimum 30 hp 22.4 kw
    • Hydraulic Type 2 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min

  • Features

    • Highway Lights Standard
    • Safety Chain Optional
    • Center splitter Optional
