Specs
Manufacturer: Kohler
Model: Command Pro® ECH980, 2 Cyl., OHV, Gasoline (Air-Cooled), Electronic Fuel Injection (EFI)
Displacement: 999 cc (61 cu. in.)
Max Power: 38 HP @ 3600 RPM
Max Torque: 58 ft-lbs
Oil Filter: Kohler P/N 52 050 02
Cooling System: Air
Fuel: Automotive Grade Unleaded Gasoline (87 Octane Minimum, 10% Ethanol Maximum)
Fuel Capacity: 9.4 gal (35.6 liter) Two Independent 4.7 Gallon Tanks with Selector Valve
Battery: 12V, 340CCA
Charging System: Flywheel Alternator
Charging Output: 25 Amp DC (Regulated)
Manufacturer/Model: Dual Independent Hydro-Gear ZT3400 Integrated Transaxles
Steering: Hand Lever Control, Individual Wheel
Forward Speed Control: Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
Parking Brake: Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h): 0-10 MPH (0-16 km/h) Infinitely Variable
Neutral: Transaxle Release by Manual Dump Valve
PTO Shaft: Quick Disconnect Splined Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch and Brake: Manual Belt Tightener Clutch and Band Brake [Stops Blades within Five (5) Seconds of Disengagement]
Recommended Cut Width: Side Discharge: 60 in. (152 cm), Rear Discharge: 52 to 64 in. (132 to 163 cm)
Cutting Height: 1 to 5 in (2.5 to 13 cm) in 1/4 in (1 cm) Increments, 17 Positions
Deck Suspension: Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Drive: 23 x 10.5-12
Tailwheel: 13 x 5.00-6 (Pneumatic 4-Ply)
Deck Caster: 13 x 5.00-6 (Pneumatic 4-Ply)
LENGTH
- Tractor Only: 69 in (175 cm)
- Tractor with R64 deck: 107 in (272 cm)

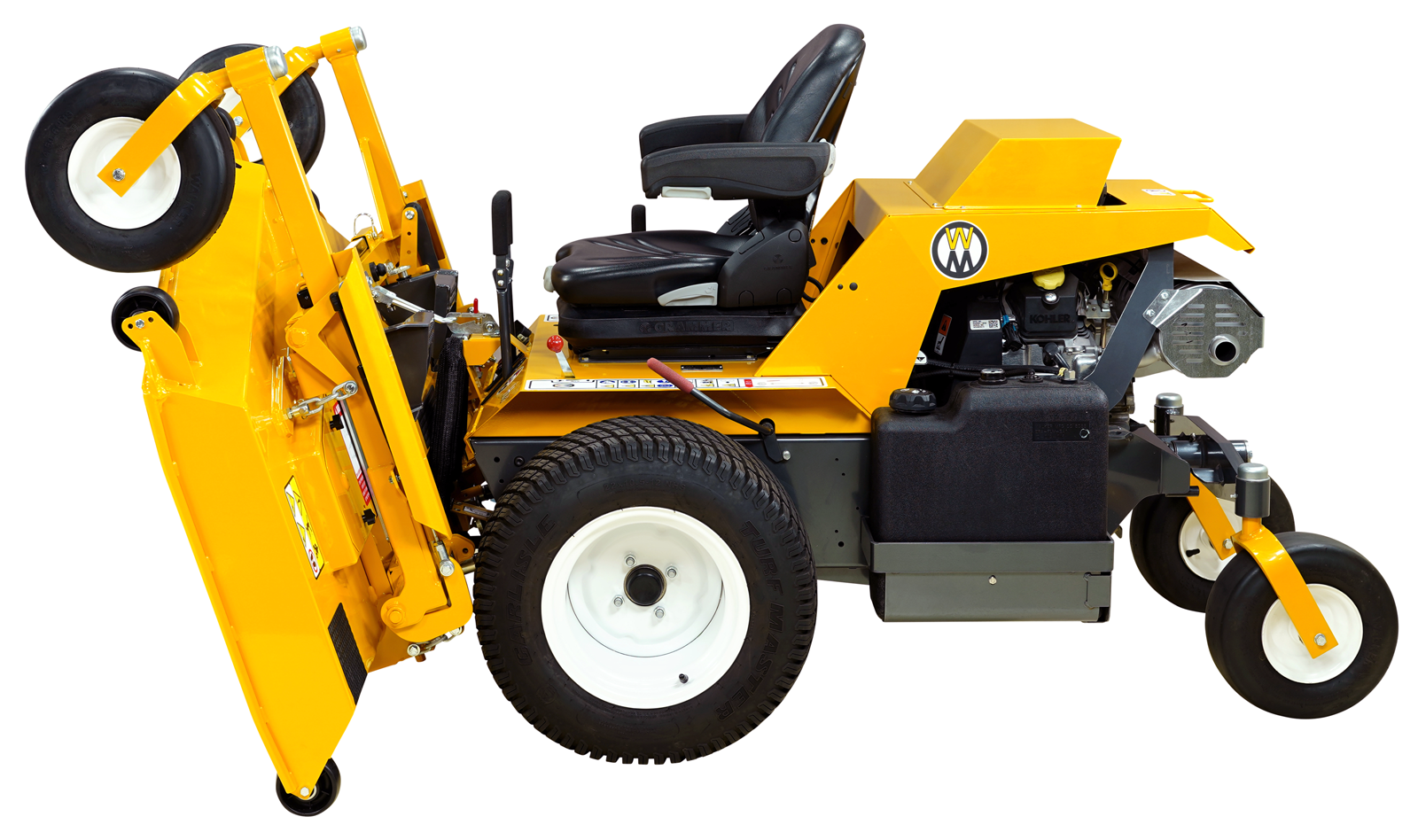

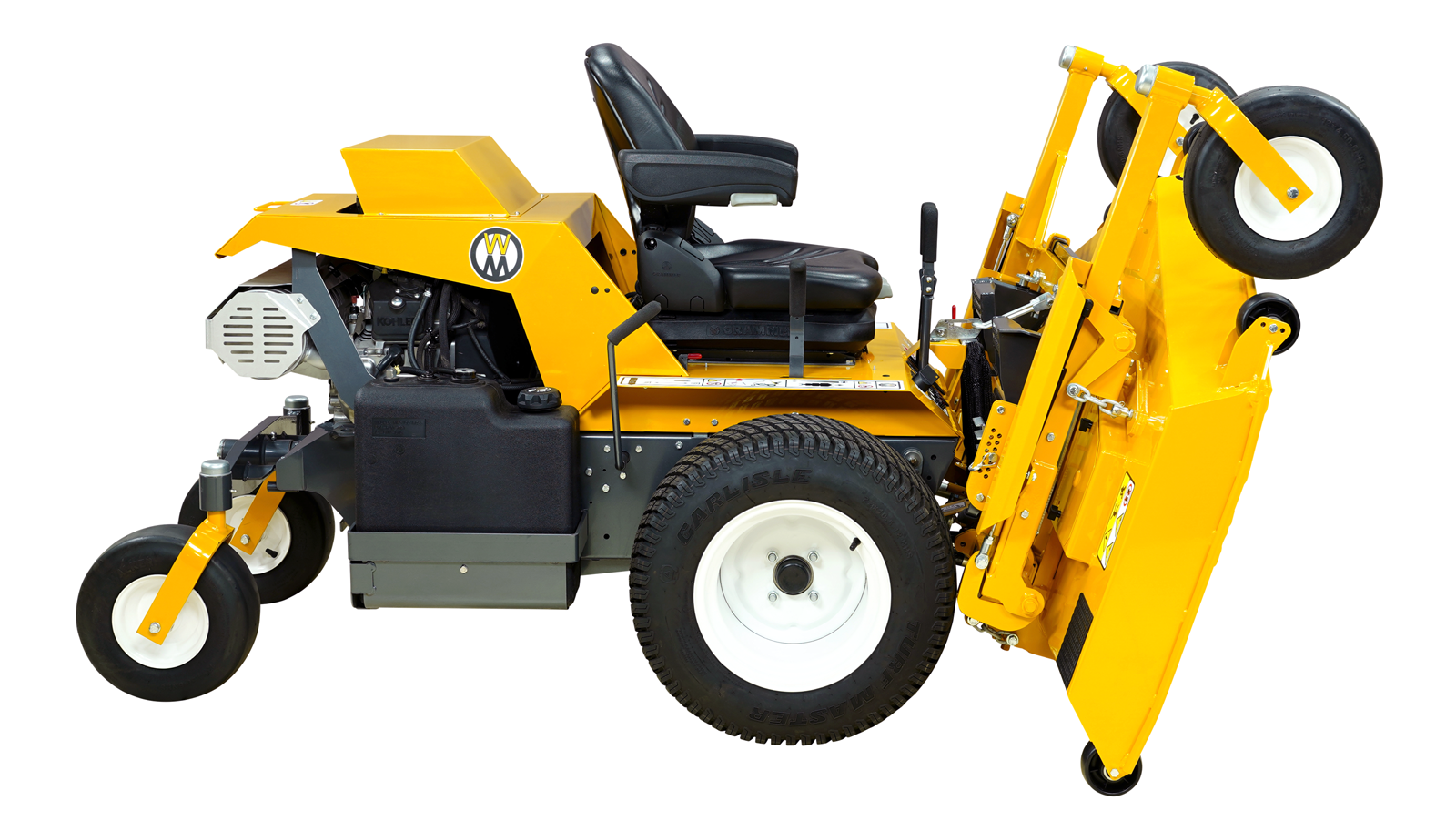

- Tractor with deck tilted: 87.75 in (223 cm)
- Tractor wheel base: 45.375 in (115 cm)
WIDTH
- Tractor Only (Outside Tire): 46.5 in (118 cm)
- Tractor with R64 deck: 66 in (168 cm)
- Tread Width: 36.5 in (93 cm)
HEIGHT
- Tractor: 46.5 in (118 cm)
WEIGHT
- Tractor Only: 808 lbs (366.5 kg)
- Tractor with R64 deck: 1239 lbs (562 kg)
