Contact us for price

Stock status: Call Store for Availability

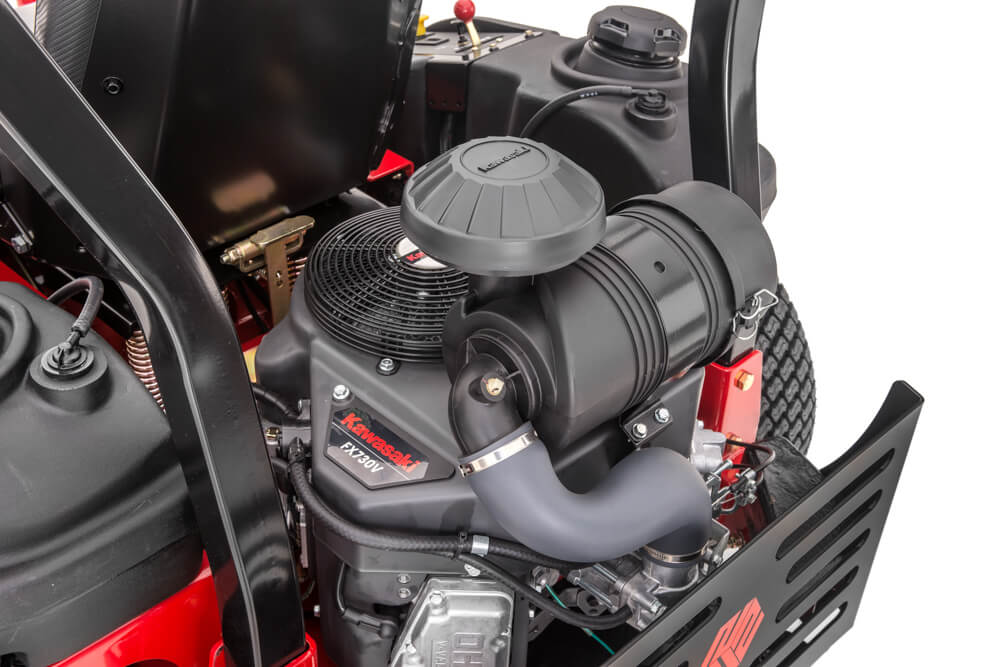

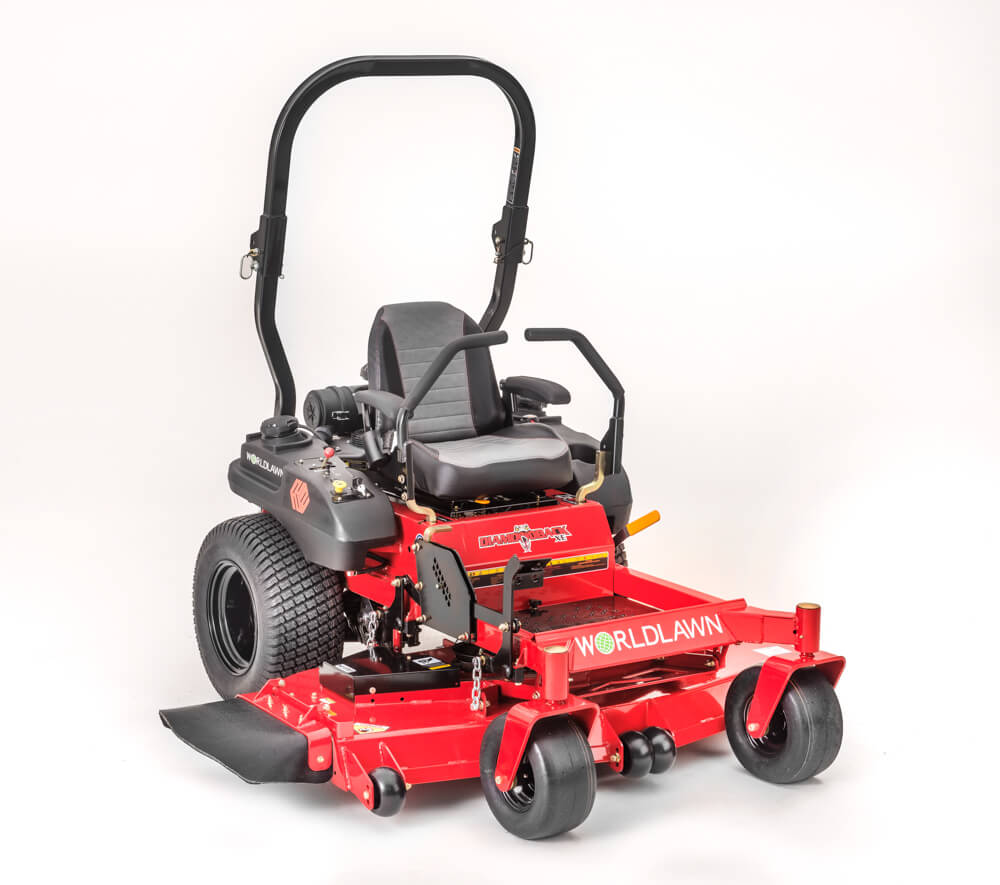

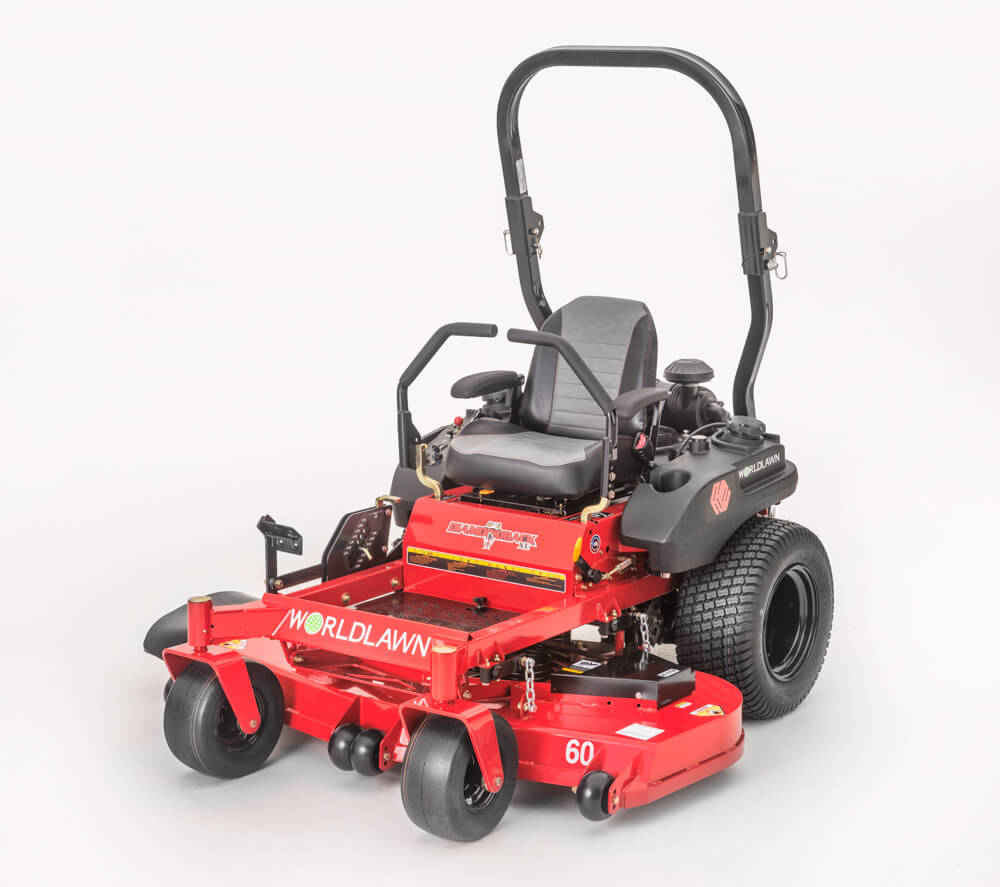

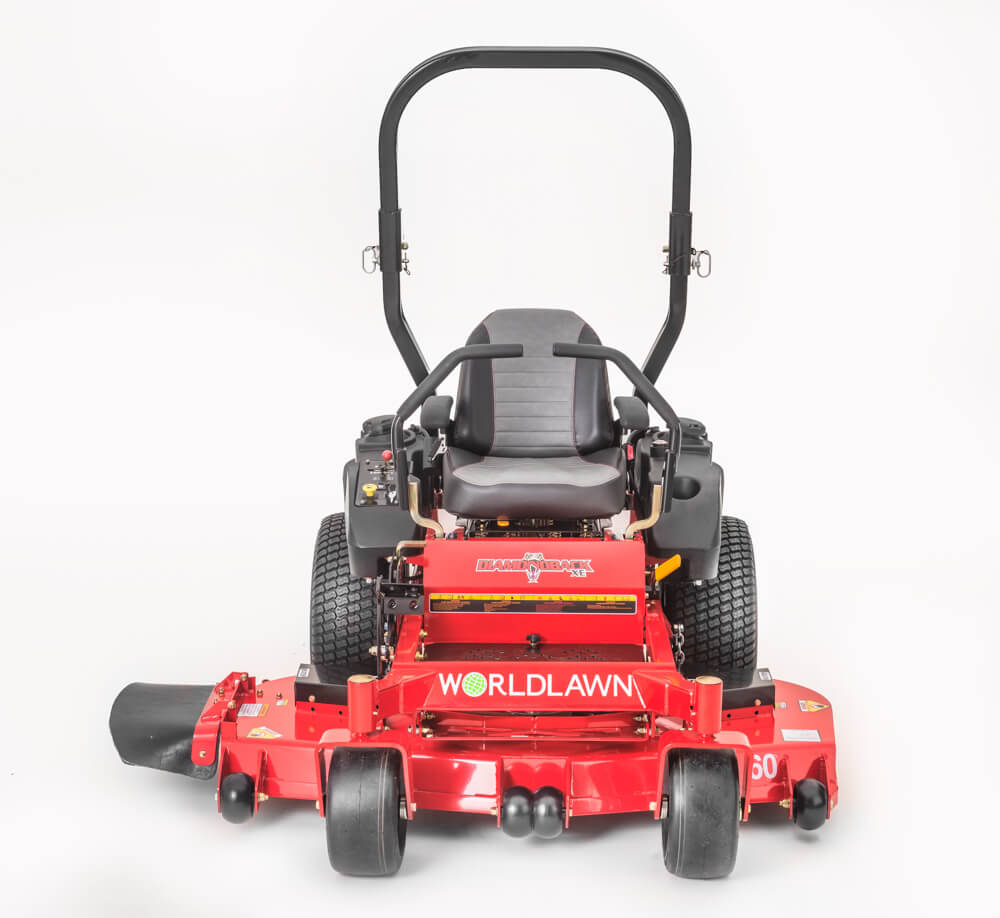

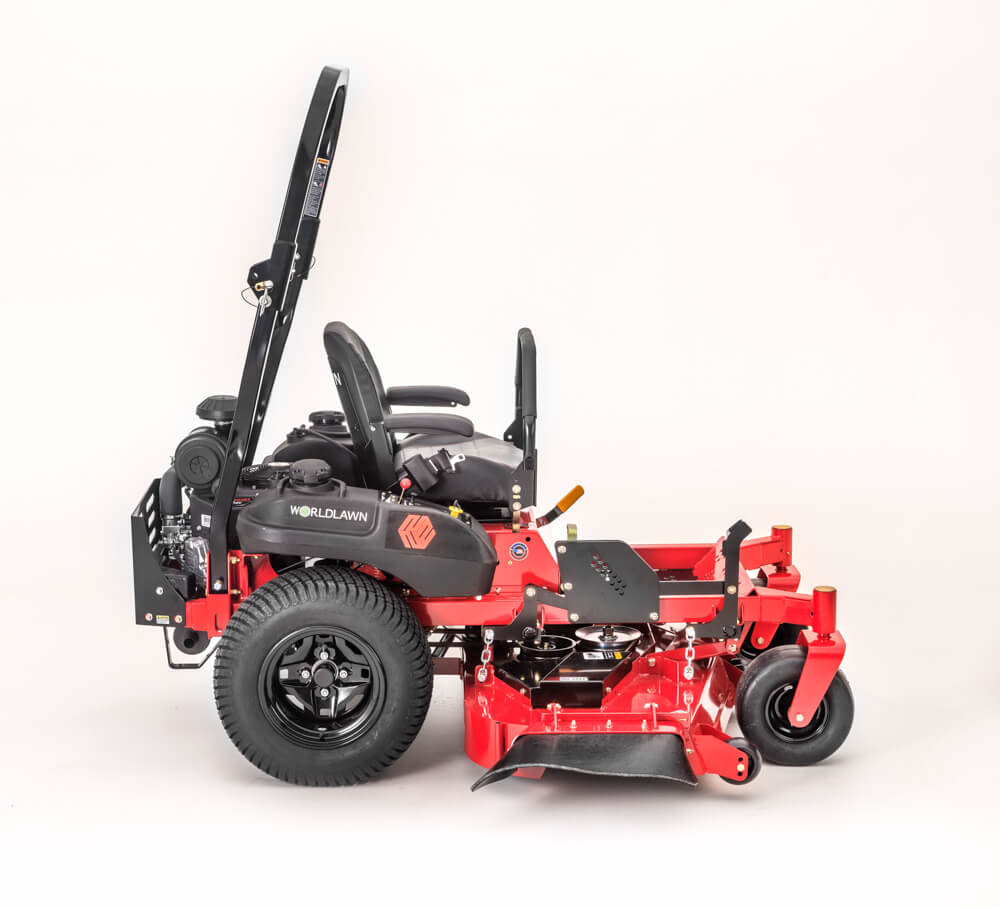

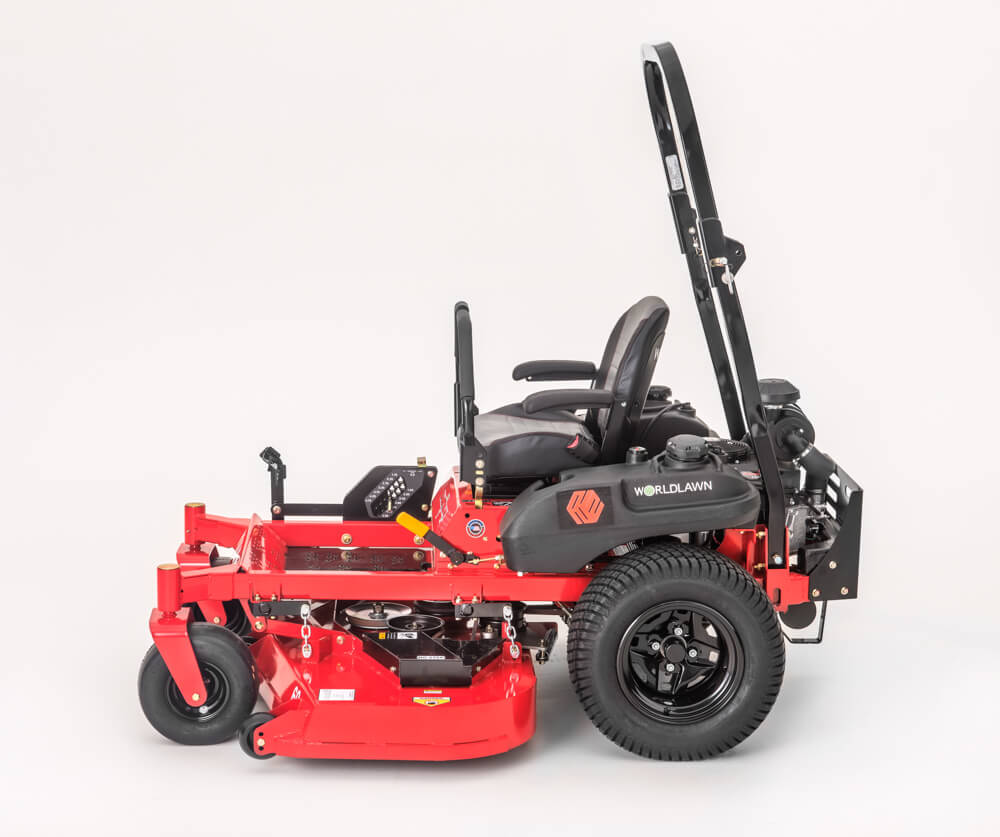

The Diamondback is a commercially built and consumer priced workhorse. The 23 horsepower Kawasaki FR691V engine and Hydro-Gear ZT-3200 transmission guarantees a fast, smooth ride every time. With a three-year limited warranty, you will come to love the reliability, exceptional value and world-proven performance that Worldlawn provides.



  • 3200 Hydro-Gear transmissions
    R.O.P.S. standard

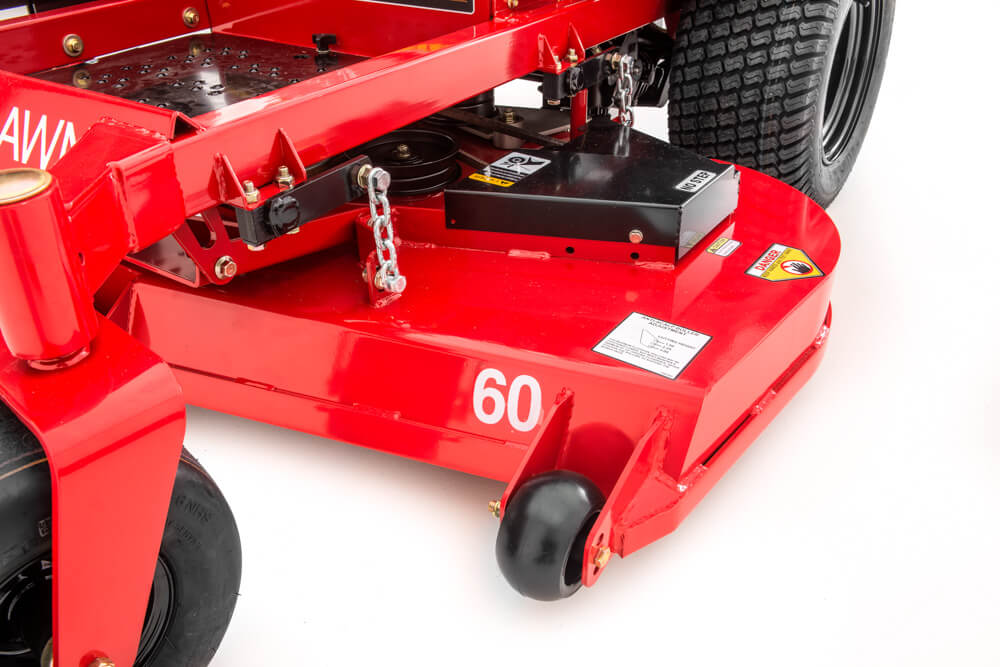

    Triple layer spindle support
    Discharge, mulch, or collect
    FR Kawasaki Series
    Worldlawn 803 V-Twin
Text UsCall Us Now

Specs

  • 48" DIAMONDBACK
  • 52" DIAMONDBACK
  • 60" DIAMONDBACK

48″ DIAMONDBACK

Model Number

Length
Width
Width w/ deflector up
Wheelbase
Wheel Track Width
Weight
Front Tires
Rear Tires
Deck Material
Cut Width
Cutting Heights
PTO
Fuel Capacity
Engine Brand
Engine HP
Forward Speed
Powered Reverse
Blades
Transmission

WYDB48FR691V32

77.4”
60”
49”
50.5”
47”
920 lbs
13 – 5.00 x 6 smooth
23 – 9.50 x 12 turf
8 ga. Steel
48
1.5” – 4.75”
Electric
9.5
KAW
23
9 mph
Yes
3 – 16.25”
Hydro-Gear ZT-3200

WYDB48LS2P82F32

77.4”
60”
49”
50.5”
47”
920 lbs
13 – 5.00 x 6 smooth
23 – 9.50 x 12 turf
8 ga. Steel
48
1.5” – 4.75”
Electric
9.5
Worldlawn V-Twin
24
9 mph
Yes
3 – 16.25”
Hydro-Gear ZT-3200


52″ DIAMONDBACK

Model Number

Length
Width
Width w/ deflector up
Wheelbase
Wheel Track Width
Weight
Front Tires
Rear Tires
Deck Material
Cut Width
Cutting Heights
PTO
Fuel Capacity
Engine Brand
Engine HP
Forward Speed
Powered Reverse
Blades
Transmission

WYDB52FR691V32

77.4″
65.5″
53″
50.5″
49.5″
950 lbs
13 – 6.50 x 6 smooth
23 – 10.50 x 12 turf
8 ga. Steel
52
1.5″ – 4.75″
Electric
9.5
KAW
23
9 mph
Yes
3 – 18″
Hydro-Gear ZT-3200

WYDB52LS2P82F32

77.4″
65.5″
53″
50.5″
49.5″
950 lbs
13 – 6.50 x 6 smooth
23 – 10.50 x 12 turf
8 ga. Steel
52
1.5″ – 4.75″
Electric
9.5
Worldlawn V-Twin
24
9 mph
Yes
3 – 18″
Hydro-Gear ZT-3200

60″ DIAMONDBACK

Model Number

Length
Width
Width w/ deflector up
Wheelbase
Wheel Track Width
Weight
Front Tires
Rear Tires
Deck Material
Cut Width
Cutting Heights
PTO
Fuel Capacity
Engine Brand
Engine HP
Forward Speed
Powered Reverse
Blades
Transmission

WYDB60FR730V32

77.4″
73″
61″
50.5″
49.5″
1020 lbs
13 – 6.50 x 6 smooth
23 – 10.50 x 12 turf
8 ga. Steel
60
1.5″ – 4.75″
Electric
9.5
KAW
24
9 mph
Yes
3 – 20″
Hydro-Gear ZT-3200

WYDB60LS2P82F32

77.4″
73″
61″
50.5″
49.5″
1020 lbs
13 – 6.50 x 6 smooth
23 – 10.50 x 12 turf
8 ga. Steel
60
1.5″ – 4.75″
Electric
9.5
Worldlawn V-Twin
24
9 mph
Yes
3 – 20″
Hydro-Gear ZT-3200
